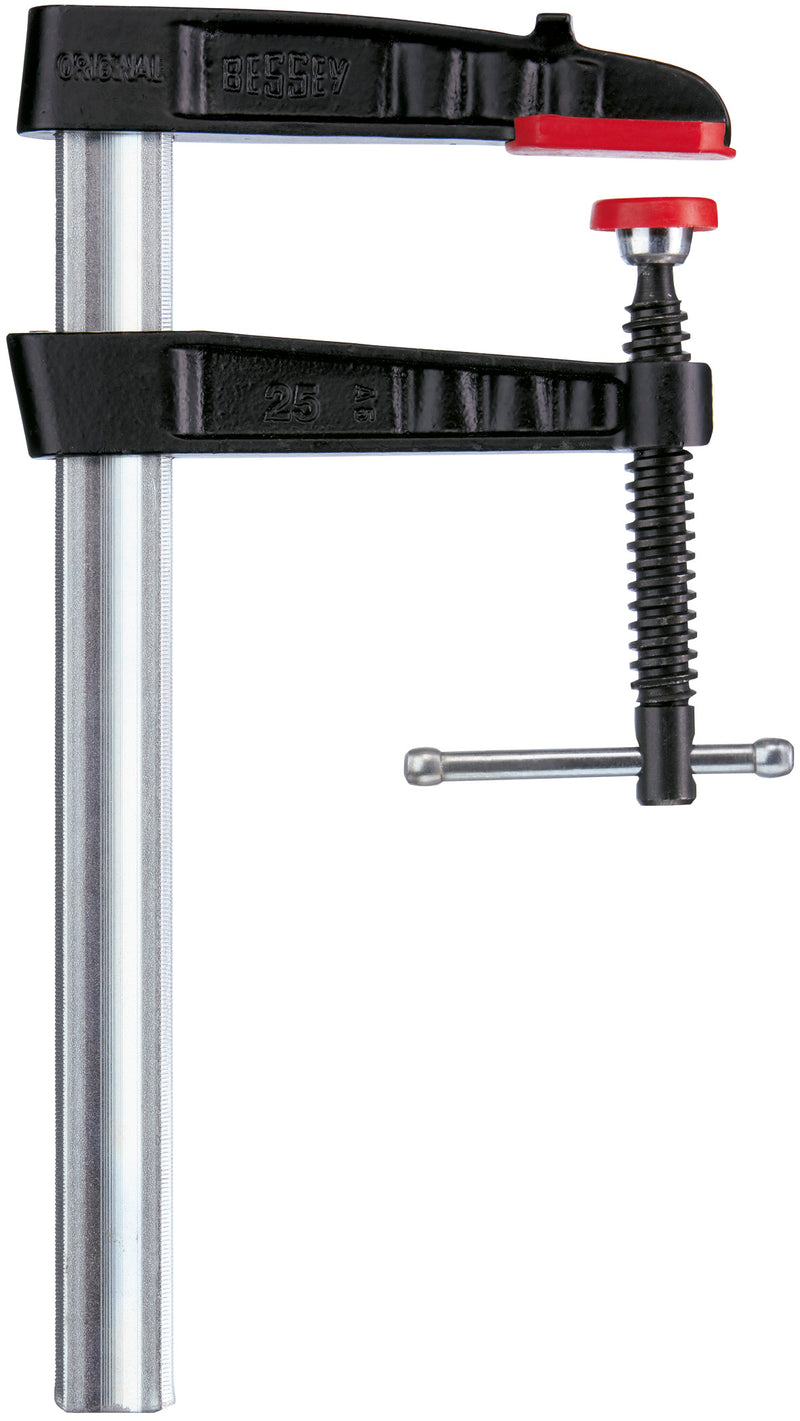

BESSEY Original TG with Tommy Bar Mallable Cast Iron Screw Clamp variant

£26.90 GBP

SKU: TG16K

Clamping force up to 6,000N
Tommy bar with rounded ends for simple transfer of force when clamping

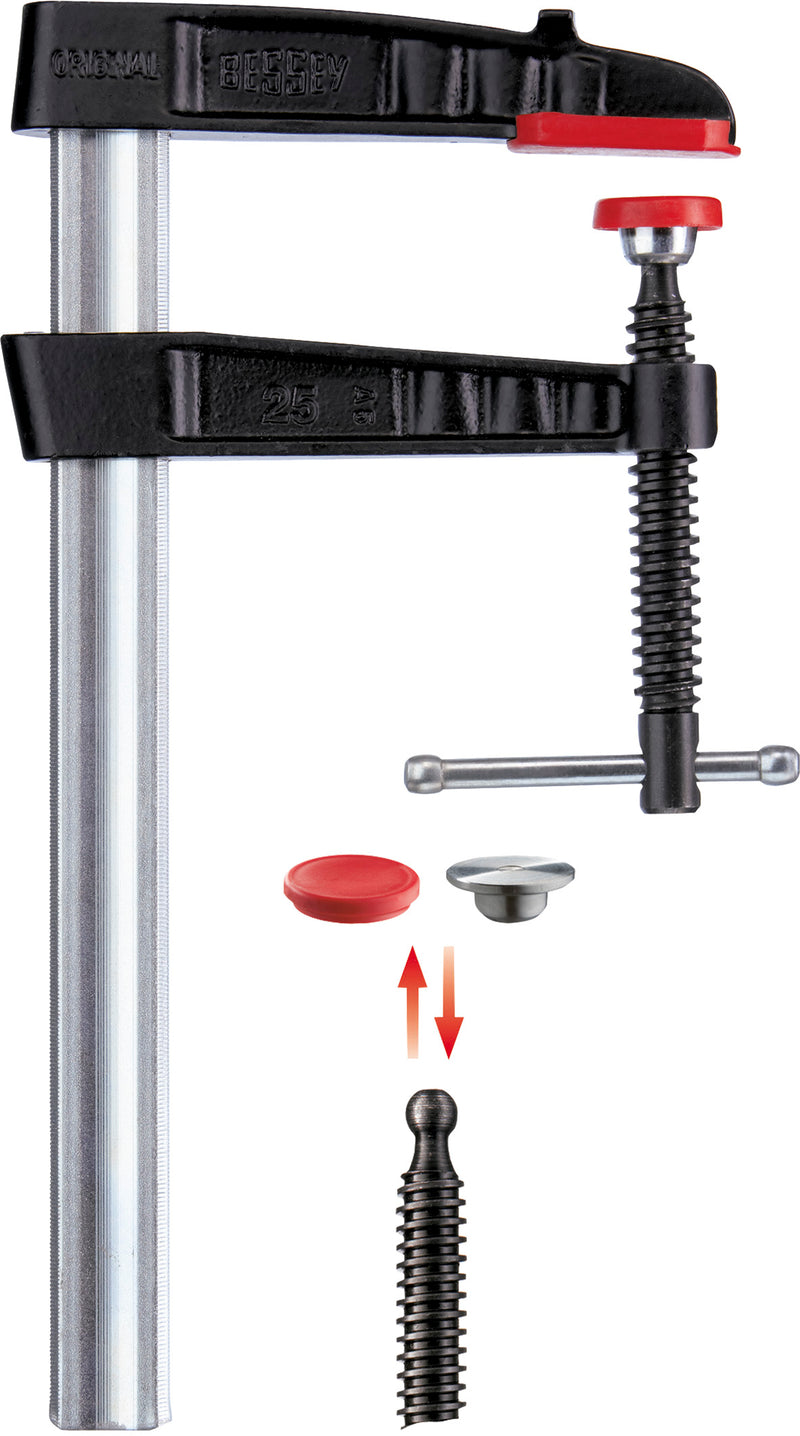

Pressure plates can be replaced by hand no tools required
With protective caps on the clamping surfaces
Stable profiled rail with serration
BESSEY anti-slip system

Option details

Rail Length Throat Depth	Price	Width	Height	Depth	Clamping pressure	Rail dimensions	Rail length	Throat depth	Rail dimensions
160mm / 80mm	£26.90	0.135	0.3	0.235	6,000 N	25 x 6 mm	160 mm	80 mm	25 x 6 mm
200mm / 100mm	£37.07	0.155	0.35	0.29	6,000 N	27 x 7 mm	200 mm	100 mm	27 x 7 mm
250mm /120mm	£45.12	0.18	0.35	0.345	6,000 N	29 x 9 mm	250 mm	120 mm	29 x 9 mm
300mm / 120mm	£48.30	0.18	0.04	0.39	6,000 N	29 x 9 mm	300 mm	120 mm	29 x 9 mm
400mm / 120mm	£52.22	0.18	0.35	0.495	6,000 N	29 x 9 mm	400 mm	120 mm	29 x 9 mm
300mm / 120m	£55.82	0.21	0.4	0.4	6,000 N	32 x 10 mm	300 mm	140 mm	32 x 10 mm
400mm / 175mm	£67.32	0.245	0.4	0.505	6,000 N	32 x 10 mm	400 mm	175 mm	32 x 10 mm
