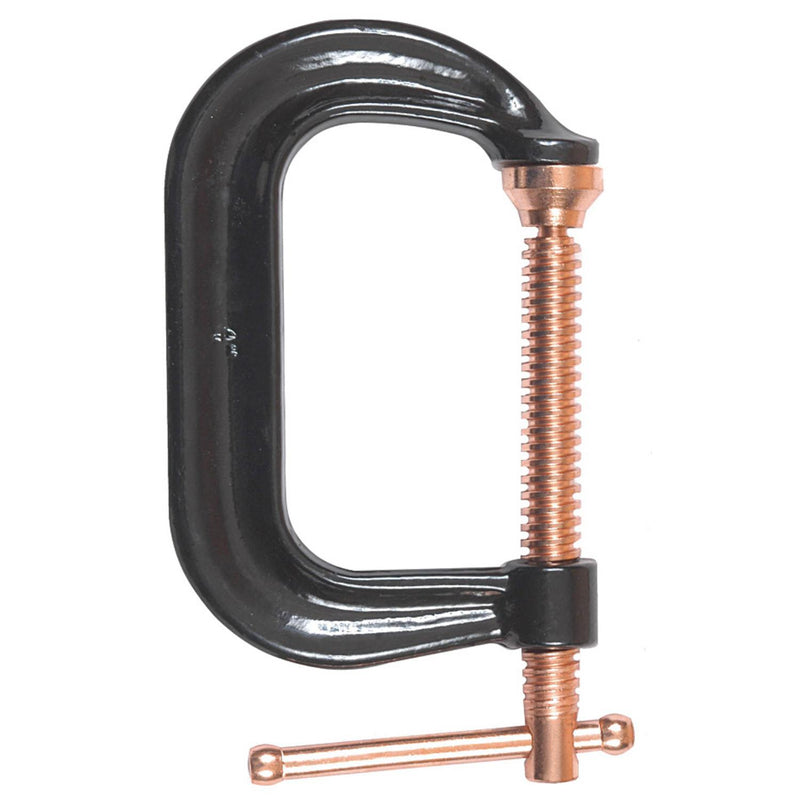

BESSEY C-clamp CDF-C
EX VAT
The BESSEY CDF-C C-Clamp is built for strong and reliable professional clamping. Its drop-forged construction provides excellent strength for demanding workshop applications. Clamping force reaches up to 18,000 N on selected models.
The copper-plated spindle helps prevent welding spatter from sticking, This makes the CDF-C especially suitable for welding and metal fabrication.
A traditional C-clamp shape provides secure and direct pressure onto the workpiece. Several opening sizes and throat depths are available.
The range suits fabrication, engineering, maintenance and general workshop use.
⭐ Key Features
• Clamping force up to 18,000 N
• Heavy-duty drop-forged construction
• Copper-plated spindle
• Helps prevent welding spatter from sticking
• Traditional C-clamp design
• Strong professional clamping performance
• Openings from 75 mm to 245 mm
• Throat depths from 60 mm to 150 mm
• Suitable for welding and fabrication
• Ideal for professional workshop use
💪 Up to 18,000 N Clamping Force
The CDF-C range provides powerful clamping across demanding applications. This provides secure workpiece holding during welding, fabrication and assembly. Different models provide varying force levels according to clamp size.
🔥 Copper-Plated Spindle
The spindle features a copper-plated surface. This helps prevent welding spatter from sticking to the spindle. The design makes the clamp especially useful around welding operations. It also helps simplify cleaning and maintenance after use.
🏗️ Drop-Forged Construction
The CDF-C is manufactured using a strong drop-forged design. This provides excellent rigidity under heavy clamping loads. The robust construction is suitable for repeated professional use. It performs well in fabrication, engineering and maintenance environments.
🔩 Multiple Sizes for Workshop Use
| Variant | Opening mm | Opening inch | Throat Depth mm | Throat Depth inch | Clamping Force N |
| CDF403C | 75 | 3 | 60 | 2-3/8 | 13000 |
| CDF404C | 105 | 4-1/4 | 85 | 2-3/4 | 16500 |
| CDF406C | 10 | 6 | 100 | 3-5/8 | 17000 |
| CDF408C | 205 | 8 | 125 | 4-1/2 | 17000 |
| CDF410C | 50-245 | 2-10 | 150 | 5-3/8 | 18000 |
🛠️ Applications
- Welding.
- Metal fabrication.
- Useful for engineering workshops.
- Assembly and maintenance.
- Steel construction.
- Useful for general professional clamping.
- Suitable where resistance to welding spatter is important.
✅ Why Choose the BESSEY CDF-C?
The BESSEY CDF-C combines powerful clamping with rugged forged construction.
Its copper-plated spindle is particularly useful around welding operations.
The range provides up to 18,000 N of clamping force.
Choose the CDF-C for strong, dependable clamping in demanding metalworking environments.
