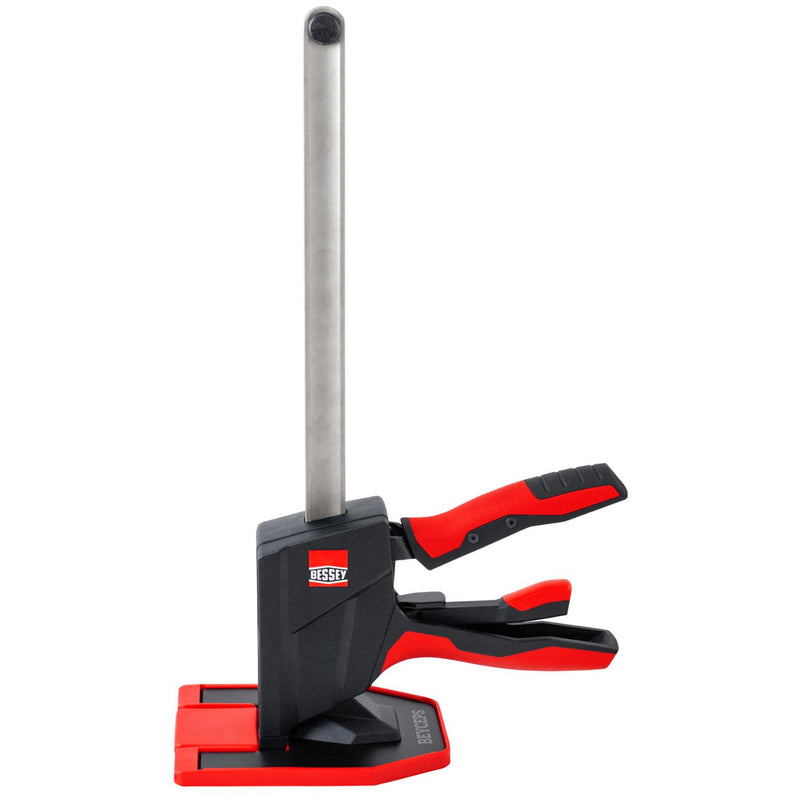

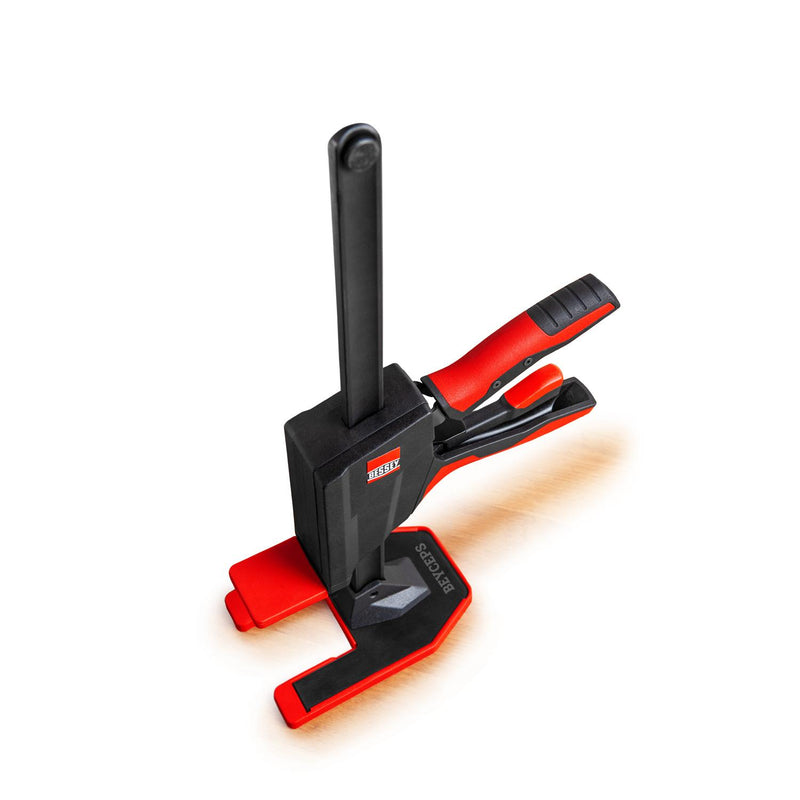

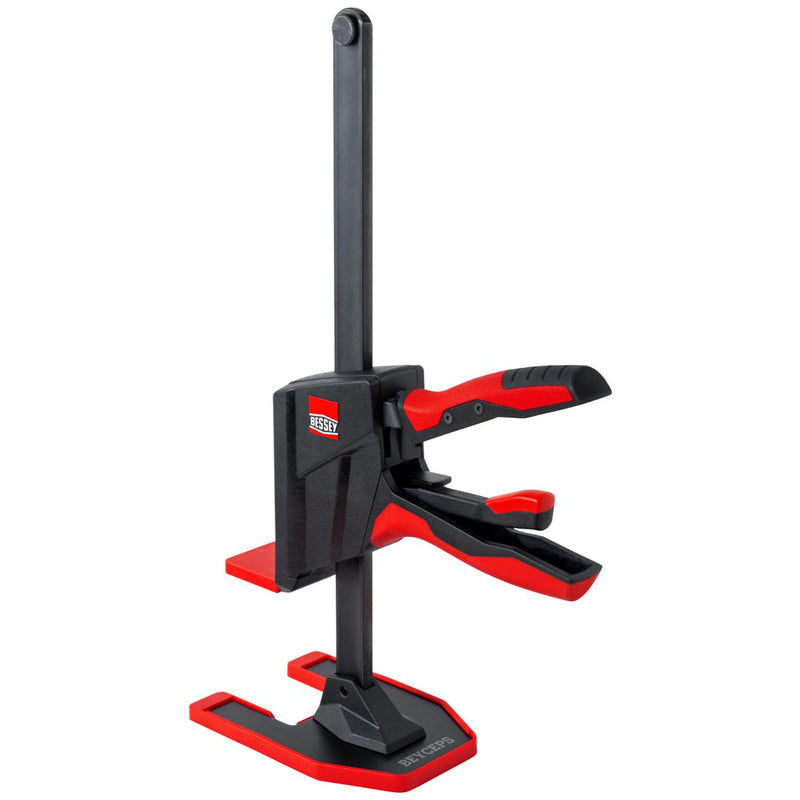

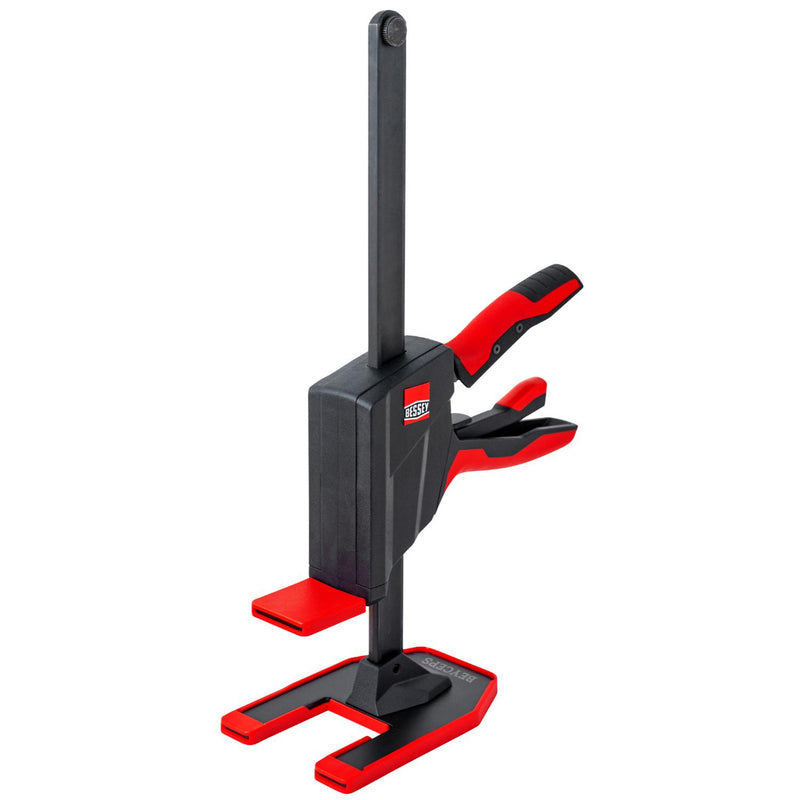

The BESSEY BEY23 BEYCEPS is a powerful one-handed lifting tool designed for precise installation and assembly work.

With lifting force up to 1,800 N or 180 kg, it makes positioning heavy workpieces significantly easier.

The tool can lift, lower and align components with millimetre precision using just one hand.Each pump lever operation provides up to 8 mm of controlled lifting movement. The separate lowering lever allows the load to be lowered by up to 4 mm per operation.

Its versatile design also allows spreading, while tool-free conversion enables the BEY23 to perform clamping tasks.

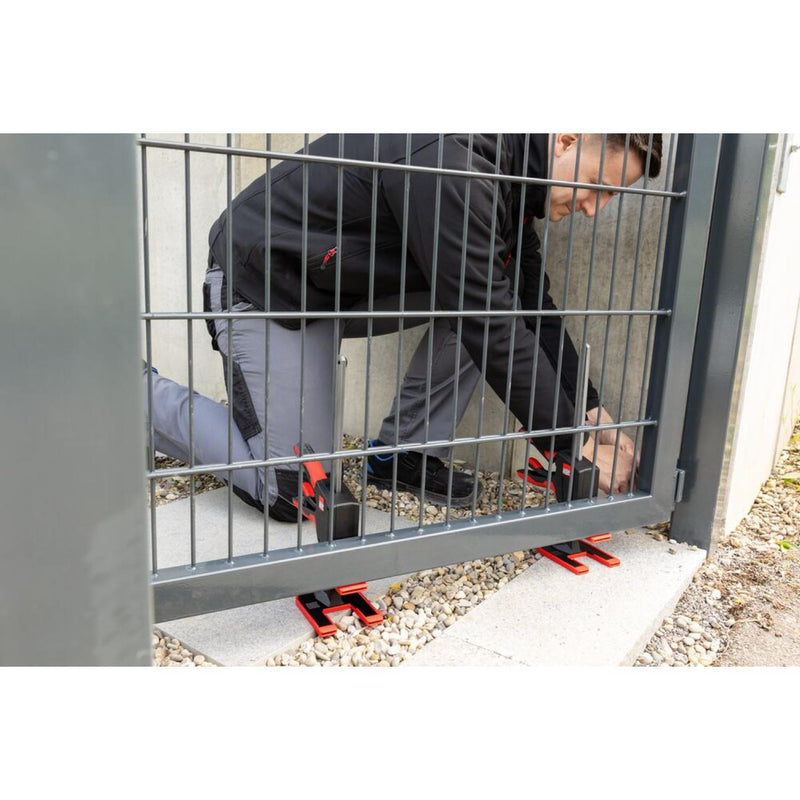

The BEYCEPS is ideal for kitchens, doors, windows, flooring, furniture, construction and professional installation work.

If you need extra height you need the installation kit ideal for the click here for the BEY-IK

✅ Key Features

• Powerful lifting force up to 1,800 N / 180 kg
• One-handed lifting, lowering and alignment
• Up to 8 mm lifting movement per pump action
• Up to 4 mm controlled lowering per lever action
• Millimetre-precise workpiece positioning
• Suitable for lifting and spreading
• Tool-free conversion for clamping
• Ergonomic 2-component pump lever
• Separate fine-lowering and release levers
• Enclosed mechanism protects against dirt and chips
• Protective caps supplied for sensitive surfaces
• CE labelled

💪 Up To 180 kg Lifting Force

The BEYCEPS provides lifting force up to 1,800 N or 180 kg. This makes positioning heavy components easier during installation, renovation and construction work. The powerful mechanism reduces physical effort while providing precise control.

🎯 Precise One-Handed Adjustment

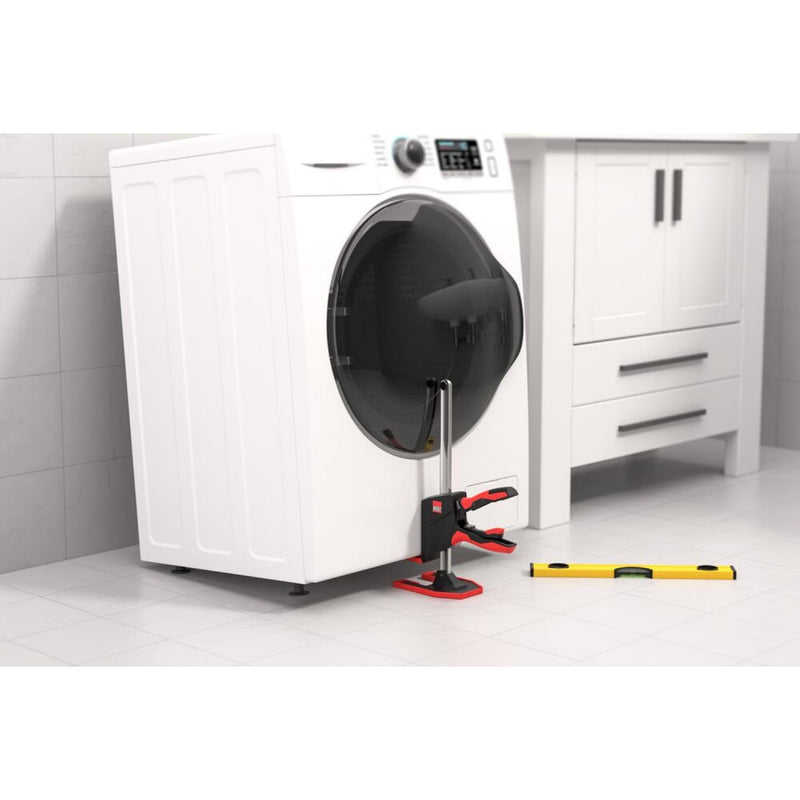

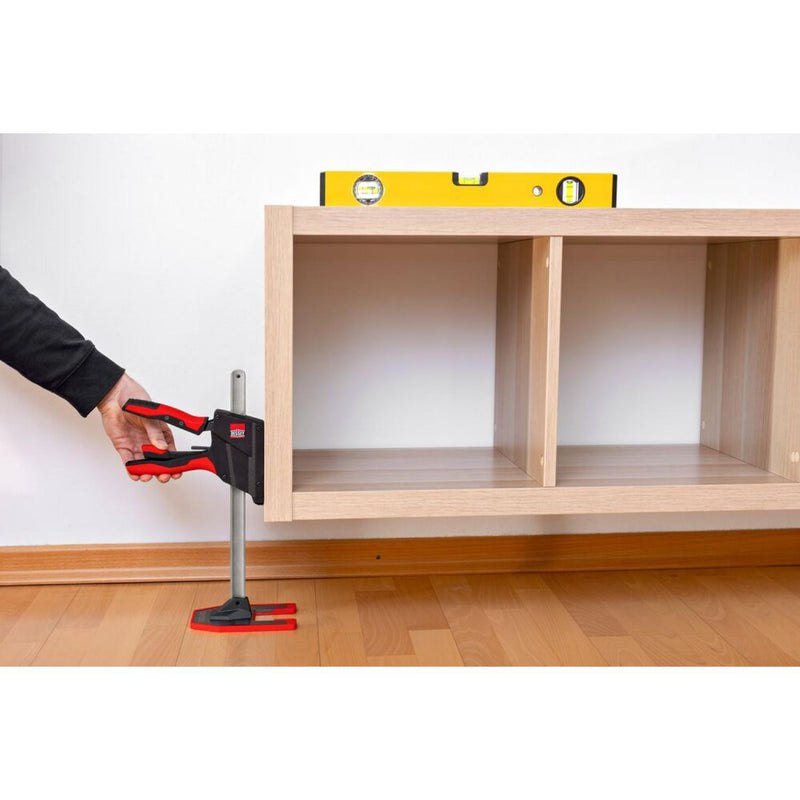

Workpieces can be lifted by up to 8 mm with each operation of the pump lever. The separate lowering lever provides controlled movement of up to 4 mm per operation. This allows accurate positioning when aligning cabinets, doors, windows and other components.

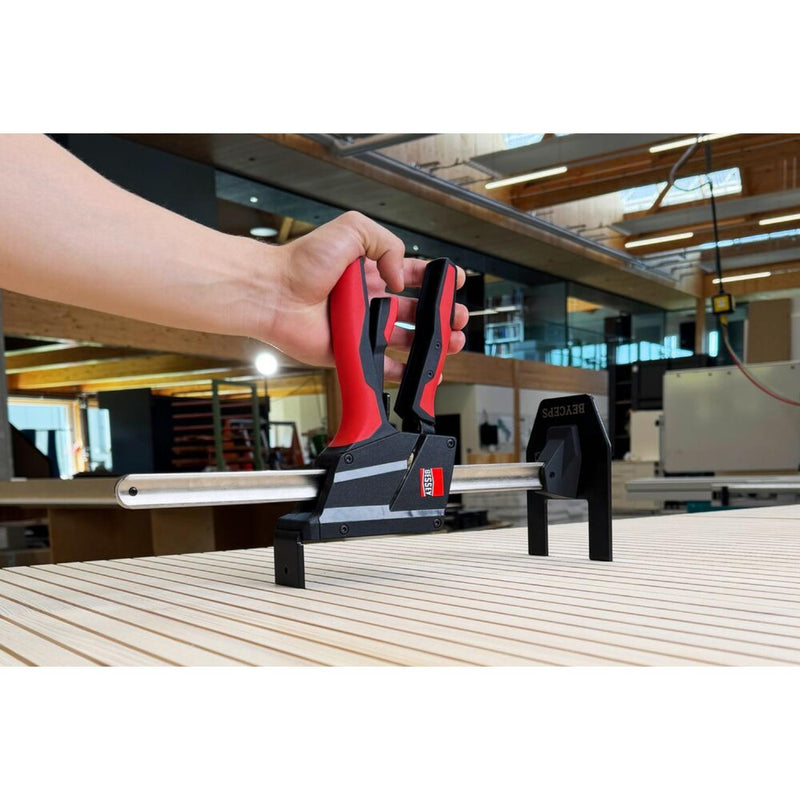

🔄 Lift, Spread And Clamp

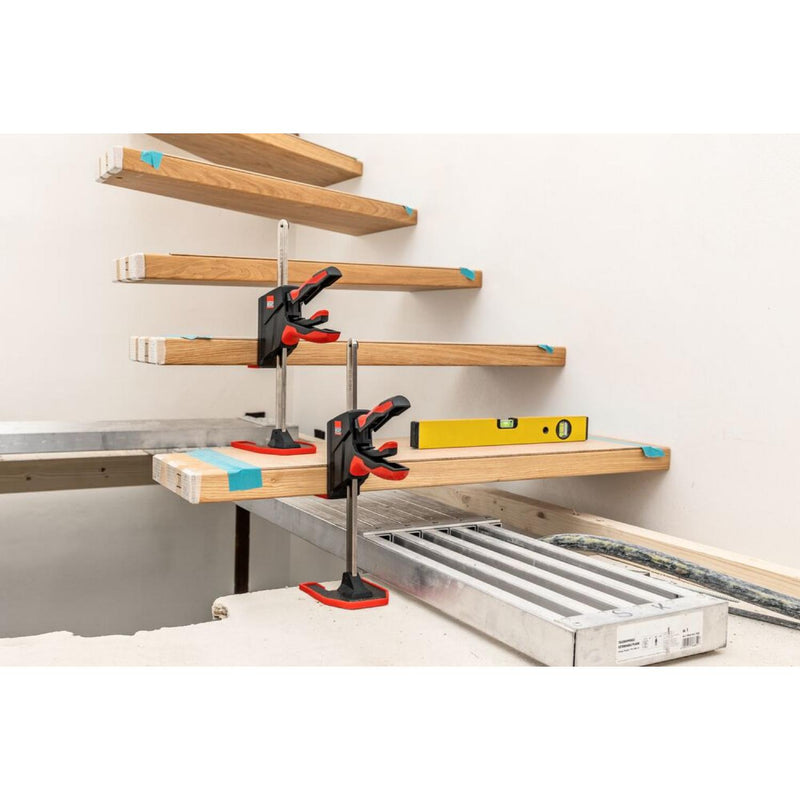

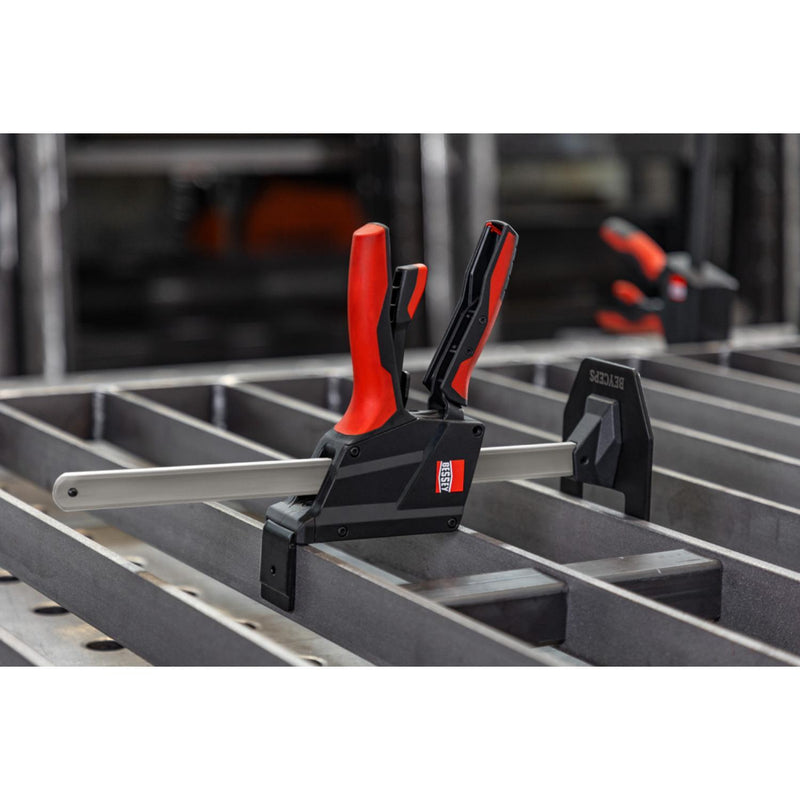

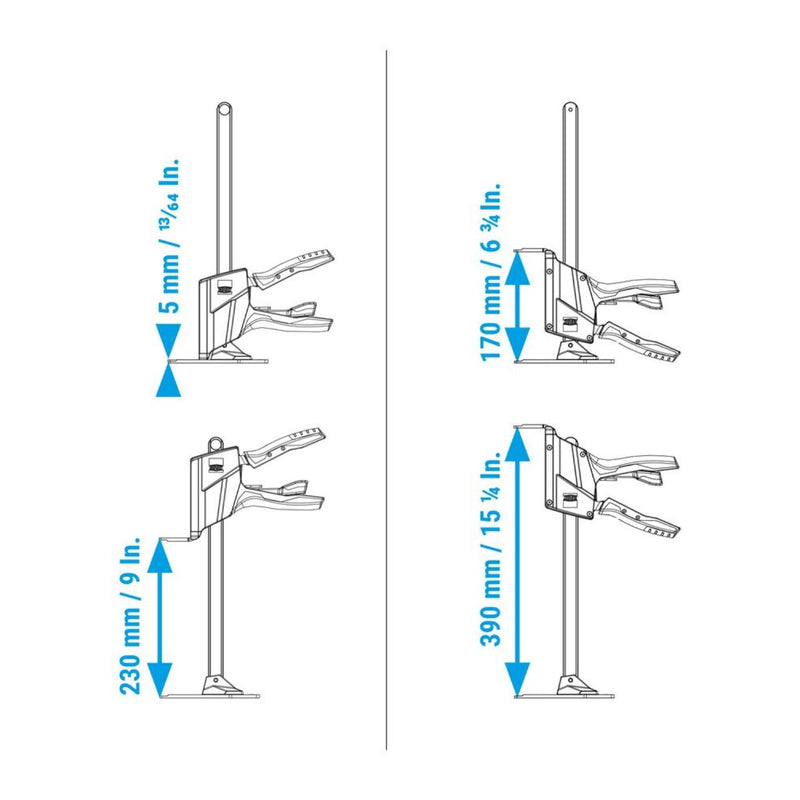

The BEY23 provides more than just lifting capability. Its 5–230 mm working range allows lifting and spreading applications. The tool can also be converted without tools for clamping between 170 mm and 390 mm. This versatility makes the BEYCEPS suitable for many installation and assembly tasks.

✋ Ergonomic And Safe Operation

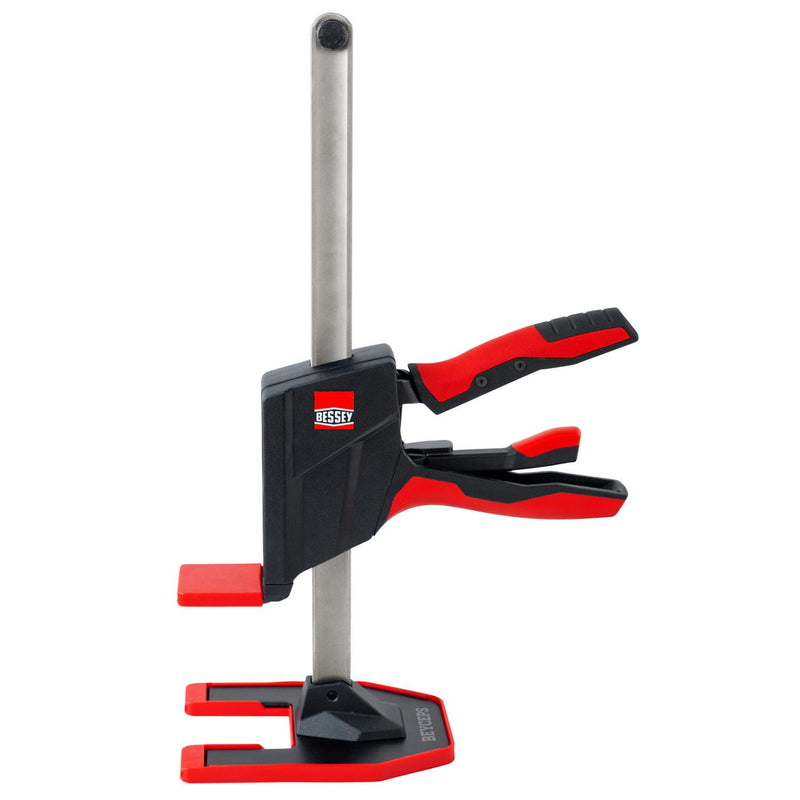

The 2-component pump lever is positioned at the top for comfortable one-handed operation. Separate levers underneath control fine lowering and full release. This layout helps prevent accidental operation while providing excellent control over the workpiece.

🛡 Protected Internal Mechanism

The lifting mechanism is enclosed within a durable plastic housing. This protects internal components from dust, dirt and workshop debris. The enclosed design also helps prevent fingers from becoming trapped in the mechanism.

🪵 Protection For Sensitive Surfaces

Protective caps for the stand and lifting plate are included. These help prevent marking or damaging finished workpieces, flooring and other sensitive surfaces.

🛠 Applications

Ideal for:

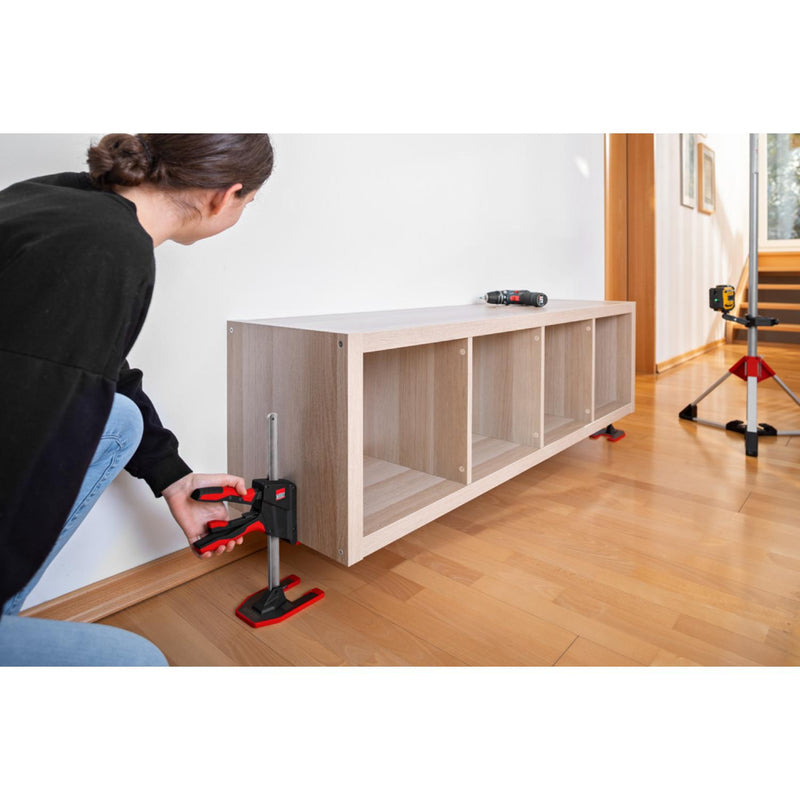

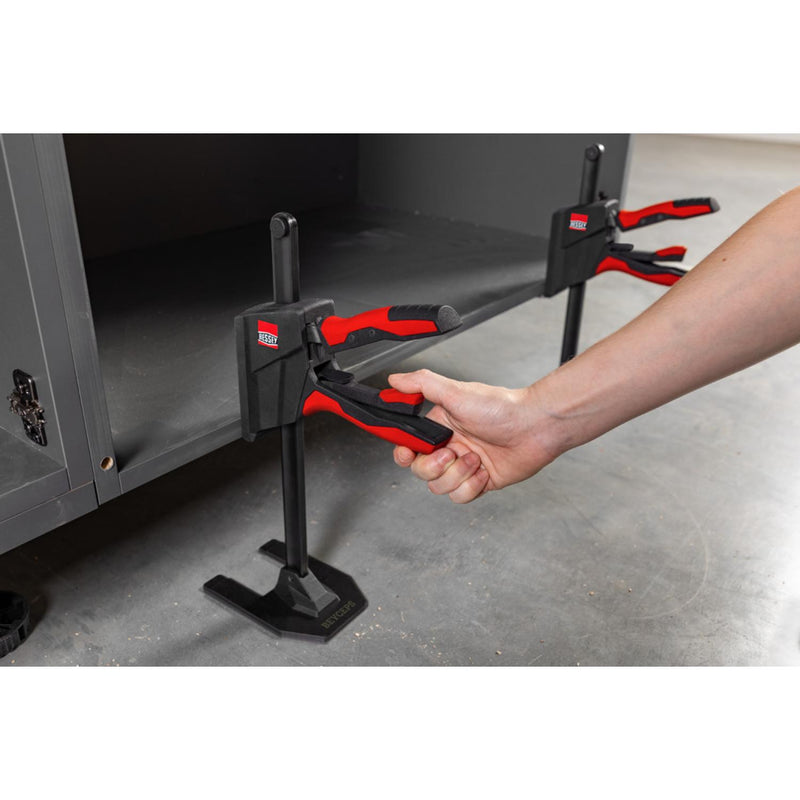

• Kitchen and cabinet installation

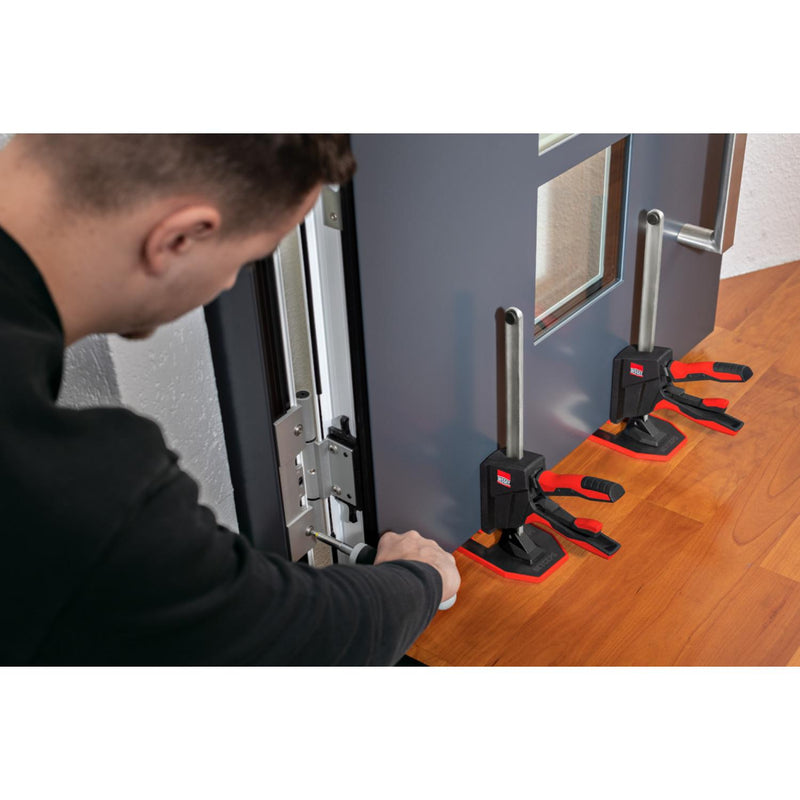

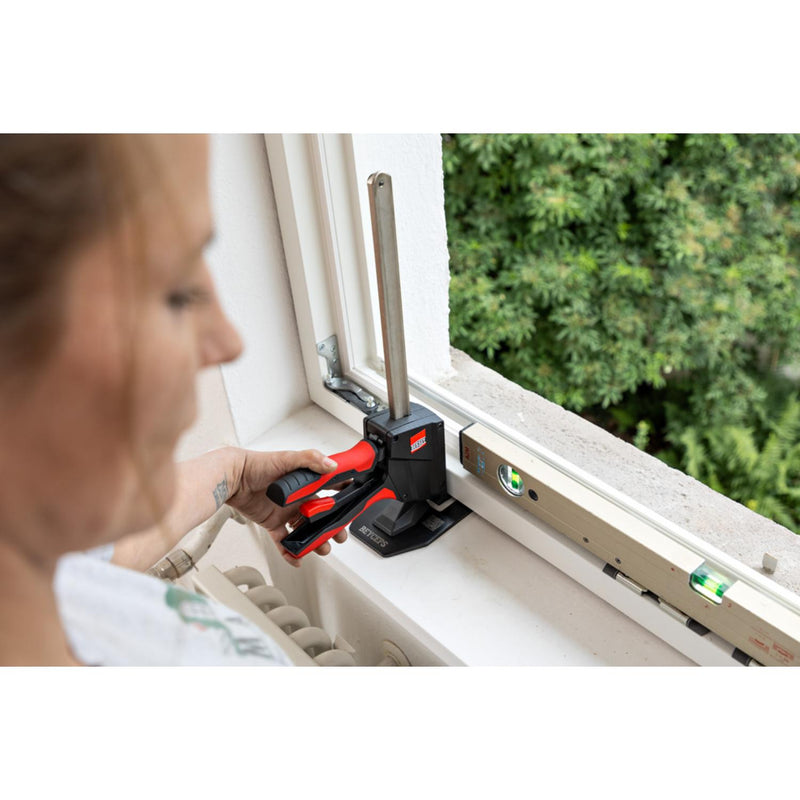

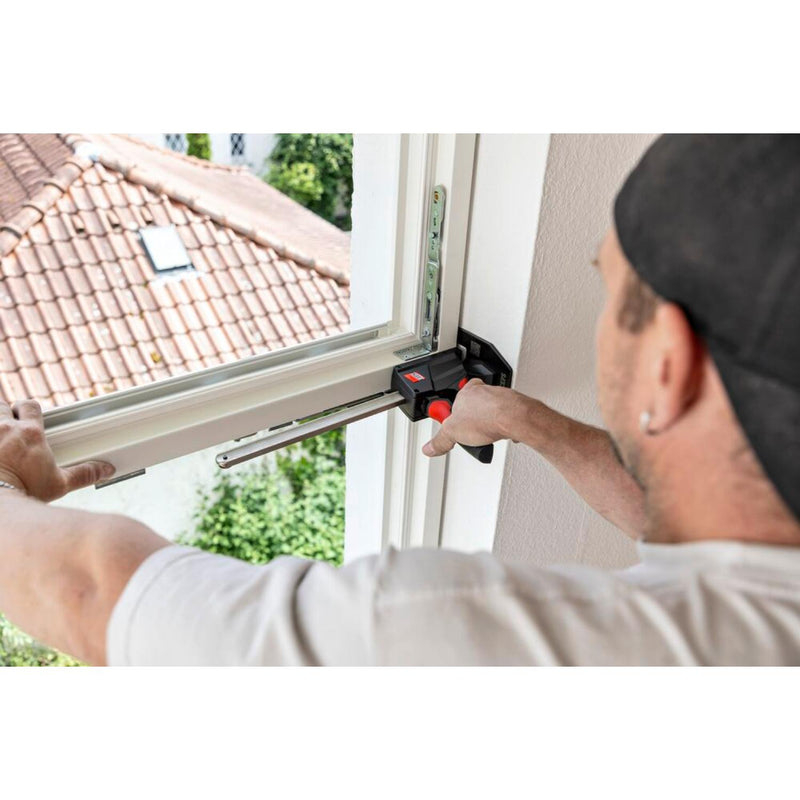

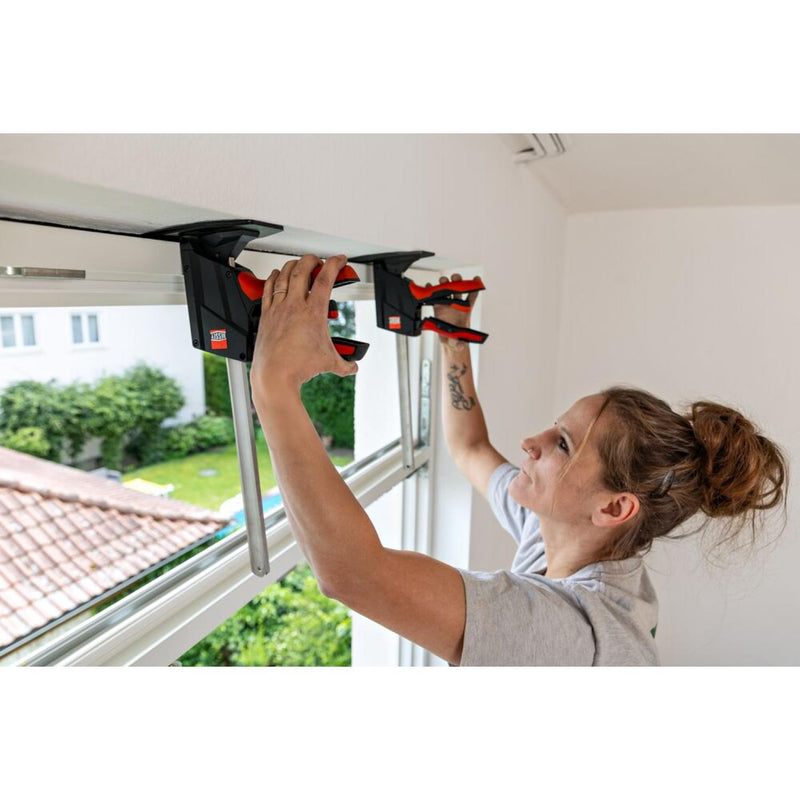

• Door and window fitting

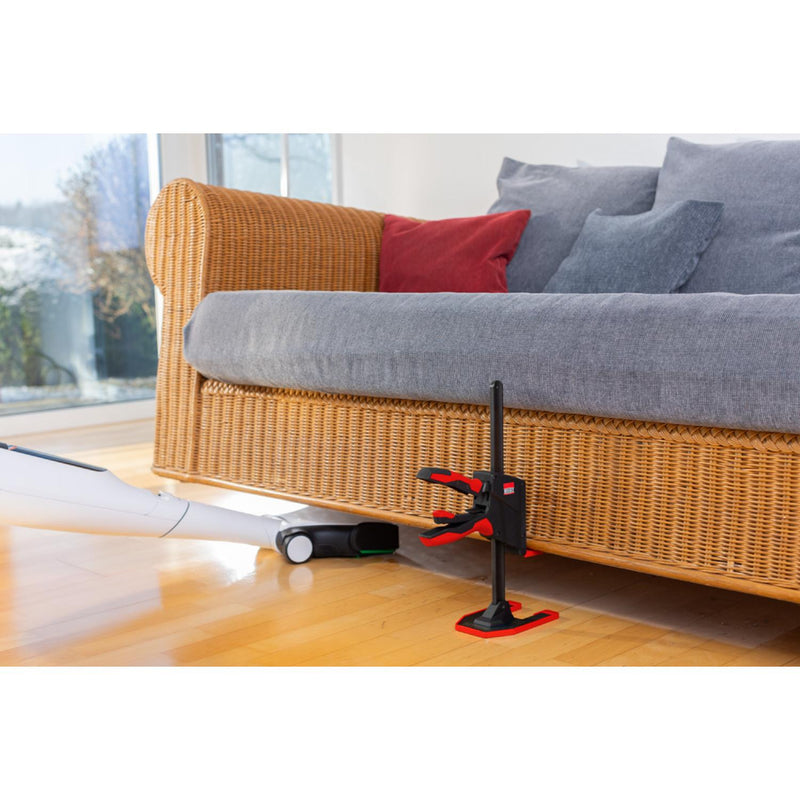

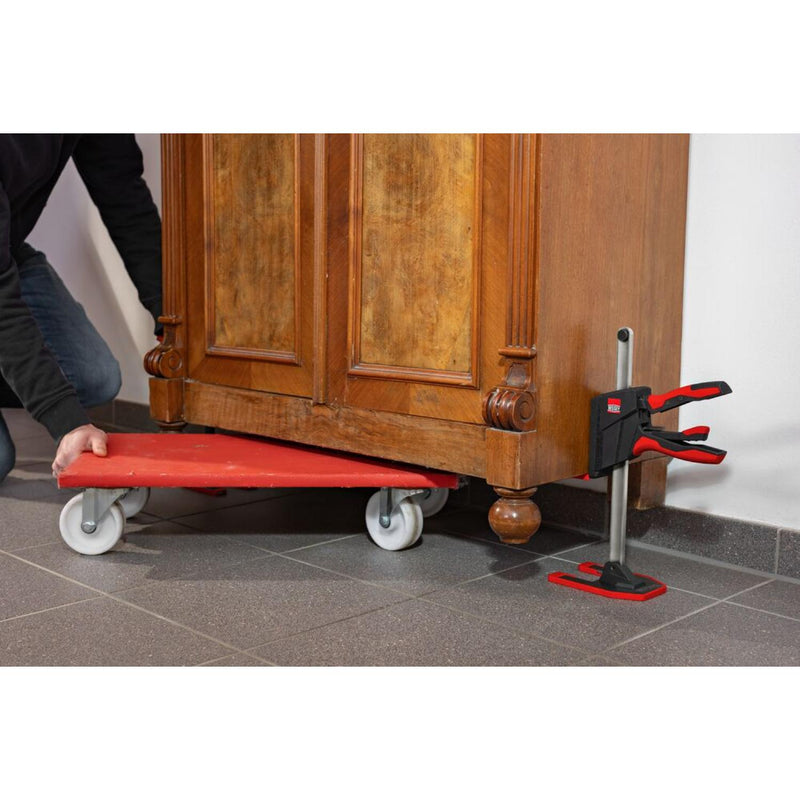

• Furniture installation

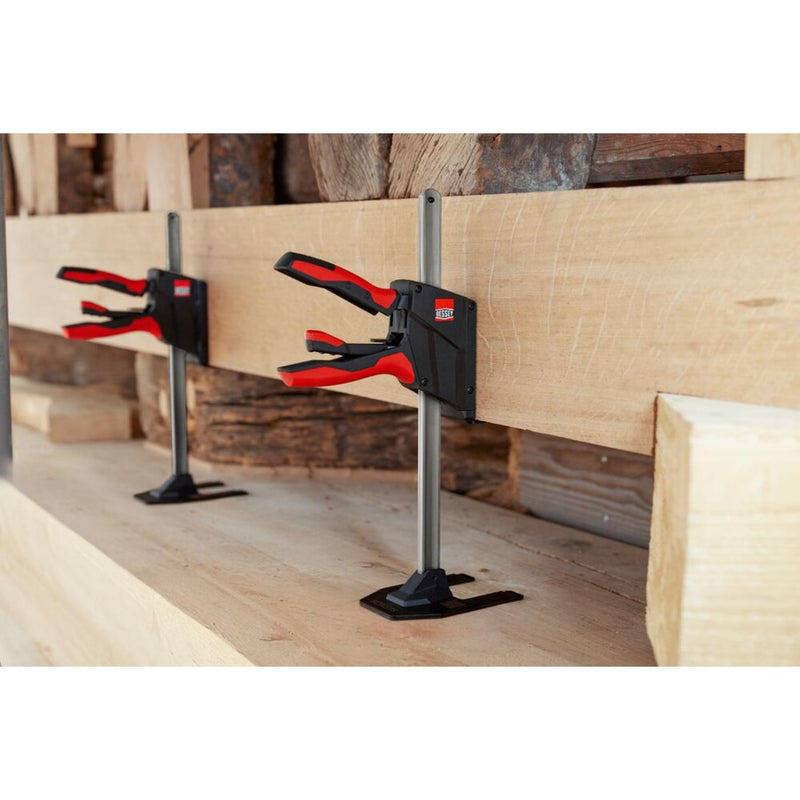

• Carpentry and joinery
• Flooring and laminate installation

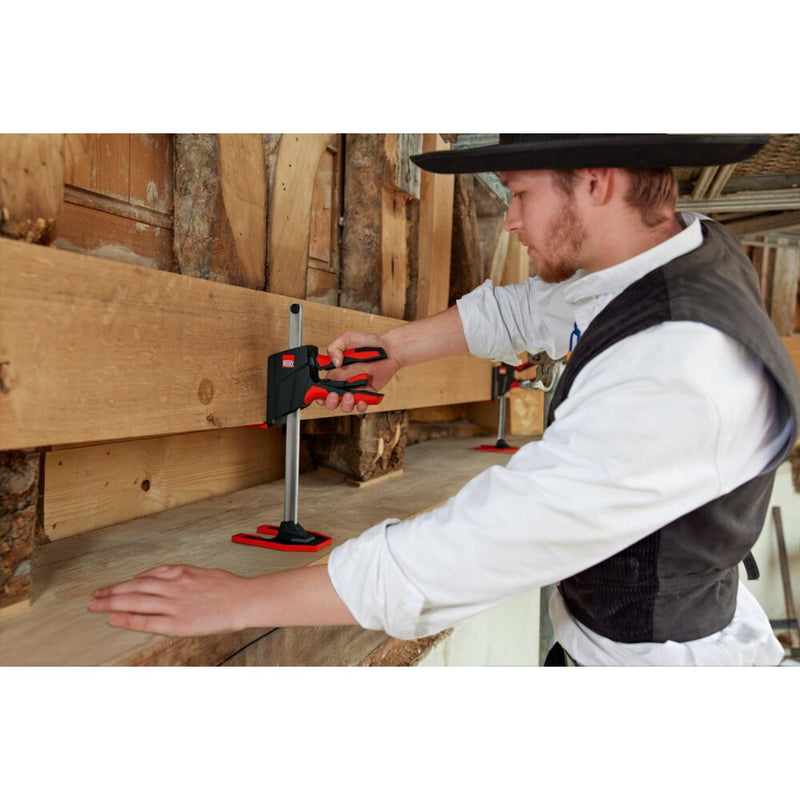

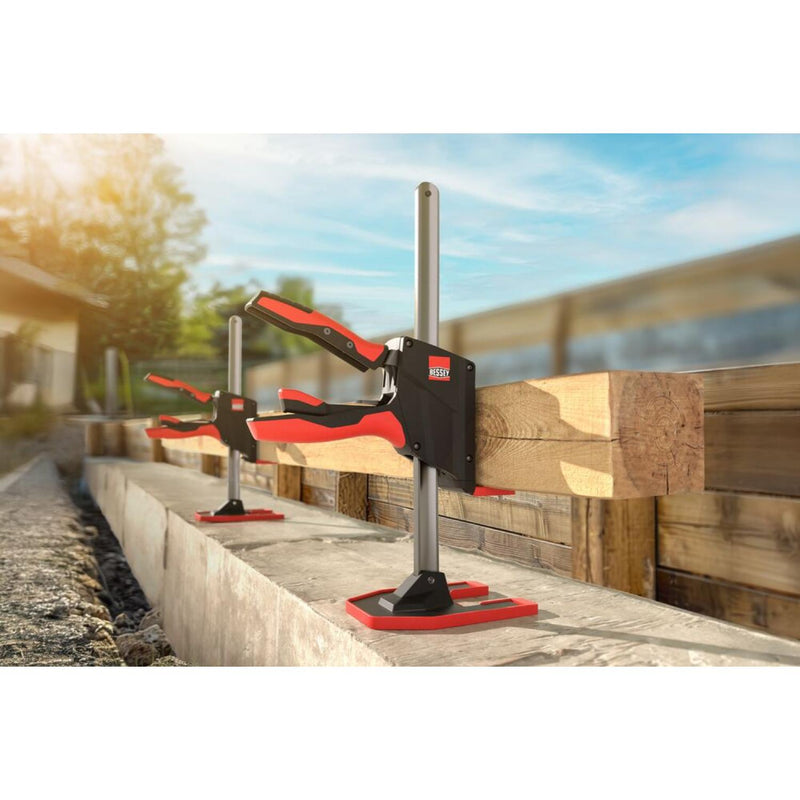

• Timber construction
• Drywall and interior fitting
• Renovation work
• Decking installation

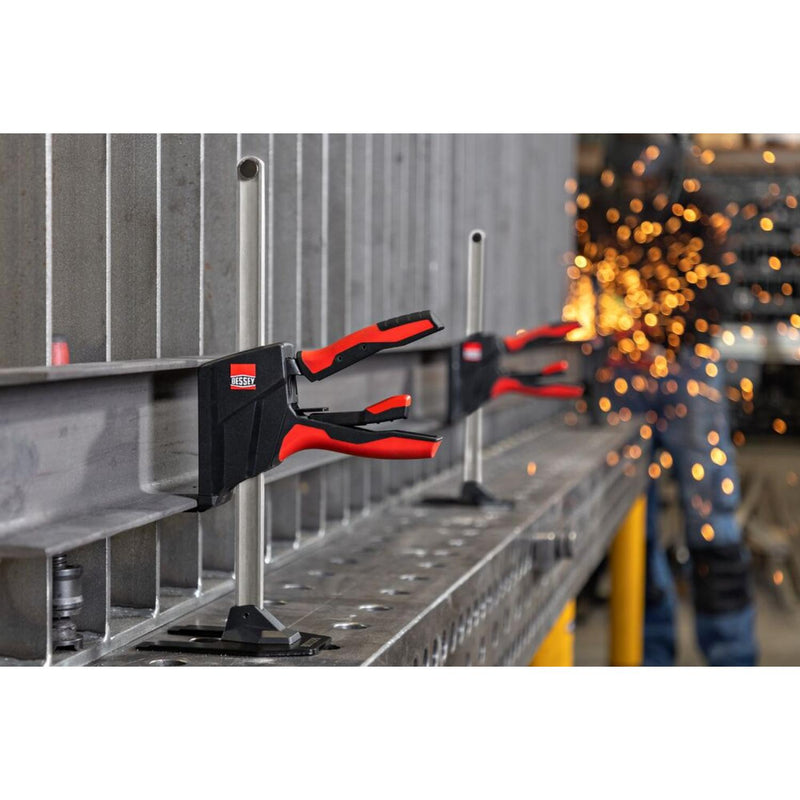

• Metal construction
• General assembly and installation

📏 Specifications

• Product: BESSEY BEYCEPS
• Model: BEY23
• Maximum Lifting Force: 1,800 N / 180 kg
• Lifting / Spreading Range: 5–230 mm
• Clamping Range: 170–390 mm
• Lift Per Pump Action: Up to 8 mm
• Lowering Per Lever Action: Up to 4 mm
• Rail Size: 22 x 8 mm
• Operation: One-handed
• Conversion To Clamping: Tool-free
• Protective Caps: Included
• CE Labelled: Yes

⭐ Why Choose the BESSEY BEY23?

The BEYCEPS combines impressive lifting power with precise one-handed control.

It can lift, lower, align, spread and clamp using one versatile professional tool.

Its ergonomic controls and protected mechanism make demanding installation work easier, safer and more efficient.
