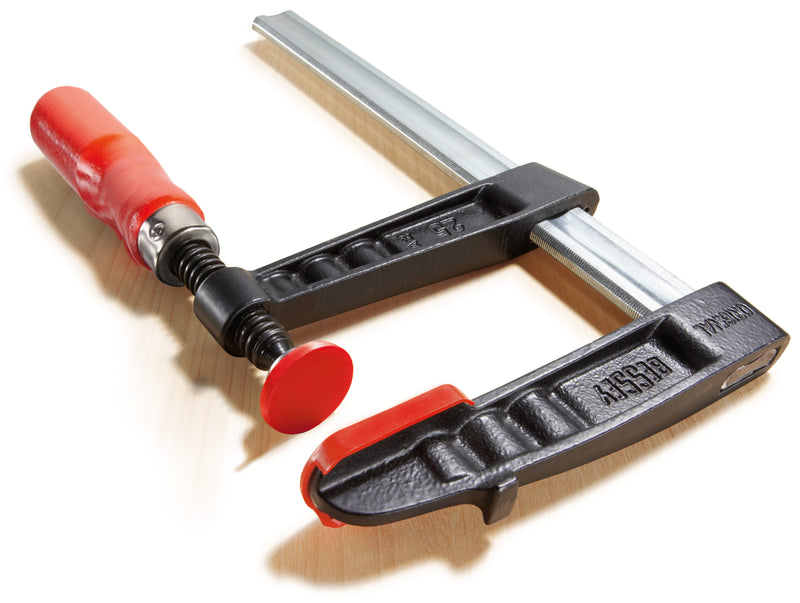

BESSEY Original TG Malleable Cast Iron Screw Clamp Wooden Handle

£15.97 GBP

SKU: TG10

Clamping force up to 6,000N
Ergonomically shaped wood handle

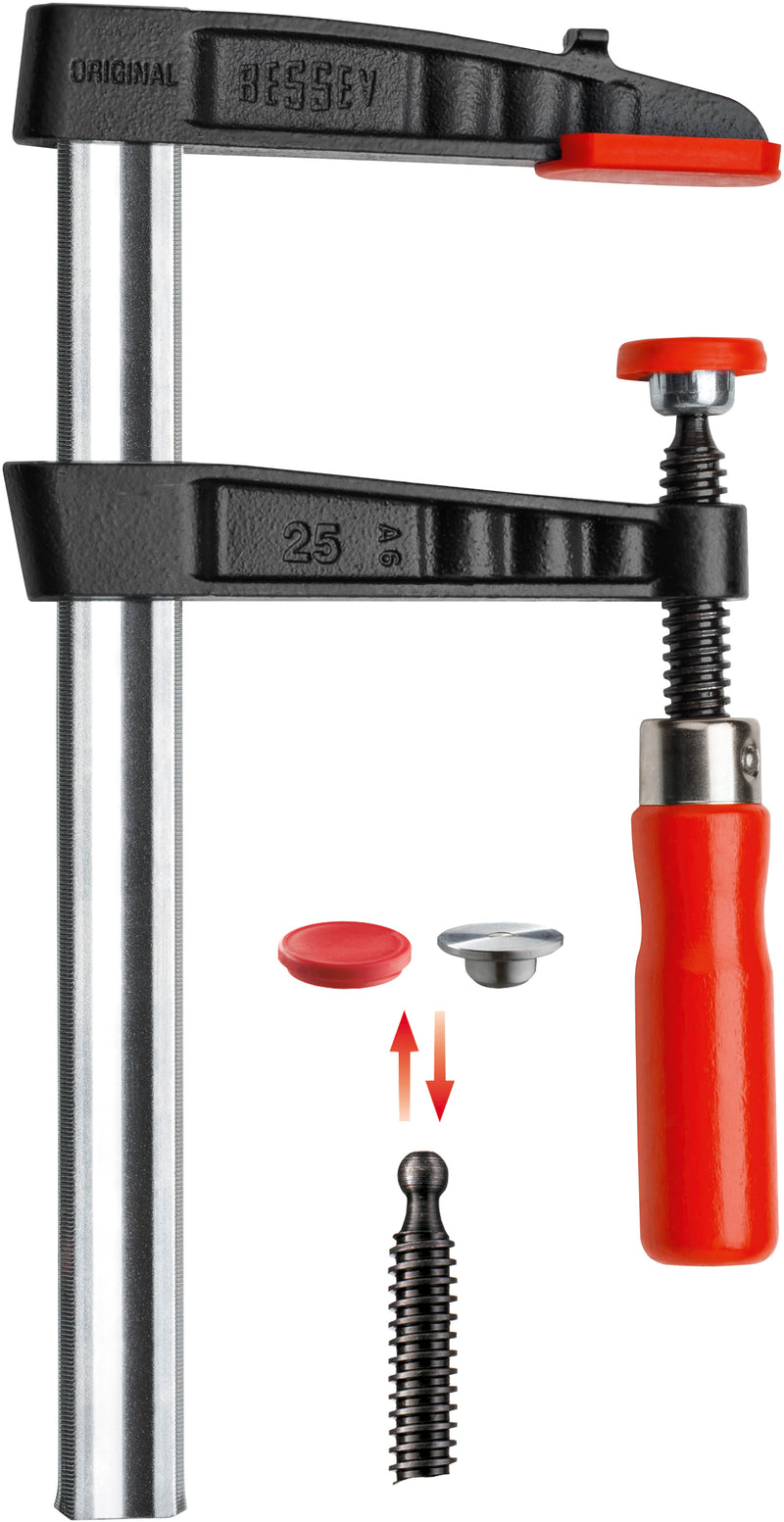

Pressure plates can be replaced by hand no tools required (from 80mm throat depth)
With protective caps on the clamping surfaces
Stable profiled rail with serration
BESSEY anti-slip system (from 80mm throat depth)

Option details

Rail Size Throat Depth	Price	Width	Height	Depth	Clamping pressure	Rail dimensions	Rail length	Throat depth	Rail dimensions
100mm / 50mm	£15.97	0.85	0.25	0.15	6,000 N	15 x 5 mm	100 mm	50 mm	15 x 5 mm
150mm / 50mm	£18.18	0.85	0.25	0.2	6,000 N	15 x 5 mm	150 mm	50 mm	15 x 5 mm
200mm / 50mm	£18.84	0.85	0.25	0.25	6,000 N	15 x 5 mm	200 mm	50 mm	15 x 5 mm
120mm / 60mm	£21.38	0.105	0.25	0.18	6,000 N	20 x 5 mm	120 mm	60 mm	20 x 5 mm
200mm / 60mm	£22.15	0.105	0.25	0.26	6,000 N	20 x 5 mm	200 mm	60 mm	20 x 5 mm
300mm / 60mm	£26.01	0.105	0.25	0.36	6,000 N	20 x 5 mm	300 mm	60 mm	20 x 5 mm
160mm / 80mm	£25.56	0.135	0.3	0.235	6,000 N	25 x 6 mm	160 mm	80 mm	25 x 6 mm
200mm / 80mm	£25.89	0.135	0.3	0.275	6,000 N	25 x 6 mm	200 mm	80 mm	25 x 6 mm
250mm / 80mm	£26.67	0.135	0.3	0.325	6,000 N	25 x 6 mm	250 mm	80 mm	25 x 6 mm
300mm / 80mm	£28.10	0.135	0.3	0.375	6,000 N	25 x 6 mm	300 mm	80 mm	25 x 6 mm
400mm / 80mm	£30.52	0.135	0.3	0.475	6,000 N	25 x 6 mm	400 mm	80 mm	25 x 6 mm
200mm / 100mm	£35.37	0.155	0.35	0.29	6,000 N	27 x 7 mm	200 mm	100 mm	27 x 7 mm
250mm / 100mm	£39.00	0.155	0.35	0.34	6,000 N	27 x 7 mm	250 mm	100 mm	27 x 7 mm
300mm / 100mm	£41.32	0.155	0.35	0.39	6,000 N	27 x 7 mm	300 mm	100 mm	27 x 7 mm
400mm / 100mm	£45.18	0.155	0.35	0.49	6,000 N	27 x 7 mm	400 mm	100 mm	27 x 7 mm
500mm 100mm	£47.27	0.16	0.35	0.59	6,000 N	27 x 7 mm	500 mm	100 mm	27 x 7 mm
250mm / 120mm	£42.86	0.18	0.35	0.345	6,000 N	29 x 9 mm	250 mm	120 mm	29 x 9 mm
300mm / 120mm	£46.39	0.18	0.35	0.395	6,000 N	29 x 9 mm	300 mm	120 mm	29 x 9 mm
400mm / 120mm	£50.25	0.18	0.35	0.495	6,000 N	29 x 9 mm	400 mm	120 mm	29 x 9 mm
500mm / 120mm	£54.10	0.18	0.35	0.595	6,000 N	29 x 9 mm	500 mm	120 mm	29 x 9 mm
600mm / 120mm	£57.63	0.17	0.03	0.69	6,000 N	29 x 9 mm	600 mm	120 mm	29 x 9 mm
800mm / 120mm	£64.68	0.18	0.35	0.895	6,000 N	29 x 9 mm	800 mm	120 mm	29 x 9 mm
1000mm / 120mm	£72.61	0.176	0.02	1.09	6,000 N	29 x 9 mm	1000 mm	120 mm	29 x 9 mm
300mm / 140mm	£53.55	0.21	0.4	0.4	6,000 N	32 x 10 mm	300 mm	140 mm	32 x 10 mm
400mm / 140mm	£60.60	0.21	0.4	0.5	6,000 N	32 x 10 mm	400 mm	140 mm	32 x 10 mm
500mm / 140mm	£65.78	0.21	0.4	0.6	6,000 N	32 x 10 mm	500 mm	140 mm	32 x 10 mm
600mm / 140mm	£70.51	0.21	0.4	0.7	6,000 N	32 x 10 mm	600 mm	140 mm	32 x 10 mm
800mm / 140mm	£80.65	0.21	0.4	0.9	6,000 N	32 x 10 mm	800 mm	140 mm	32 x 10 mm
1000mm / 140mm	£92.33	0.21	0.03	1.11	6,000 N	32 x 10 mm	1000 mm	140 mm	32 x 10 mm
400mm / 175mm	£65.34	0.245	0.4	0.505	6,000 N	32 x 10 mm	400 mm	175 mm	32 x 10 mm
500mm / 175mm	£72.61	0.245	0.4	0.605	6,000 N	32 x 10 mm	500 mm	175 mm	32 x 10 mm
600mm / 175mm	£77.13	0.241	0.047	0.714	6,000 N	32 x 10 mm	600 mm	175 mm	32 x 10 mm
800mm / 175mm	£87.16	0.245	0.4	0.905	6,000 N	32 x 10 mm	800 mm	175 mm	32 x 10 mm
1000mm 175mm	£97.51	0.245	0.4	1.105	6,000 N	32 x 10 mm	1000 mm	175 mm	32 x 10 mm
