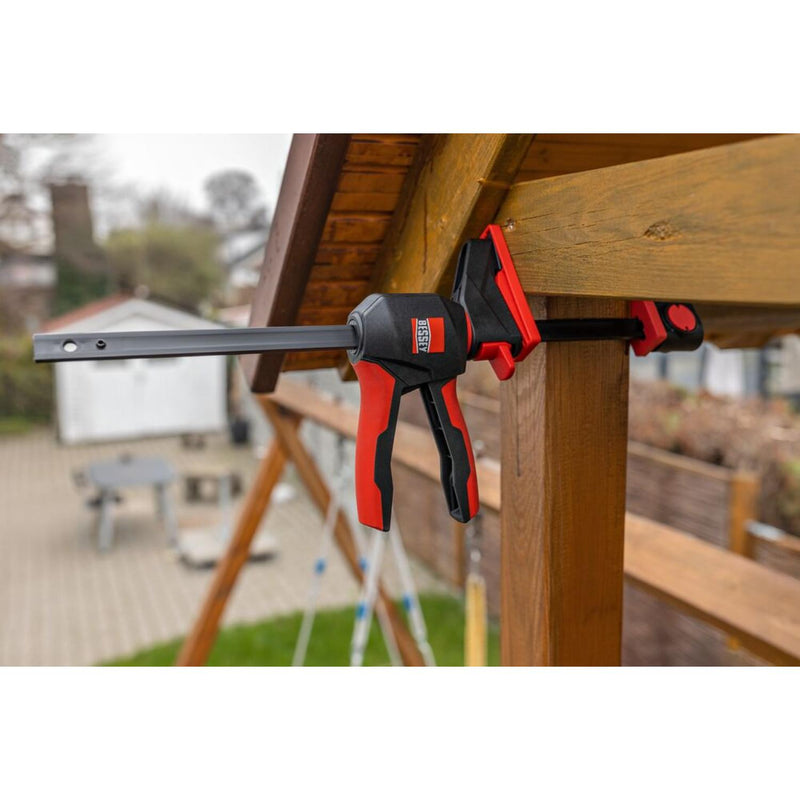

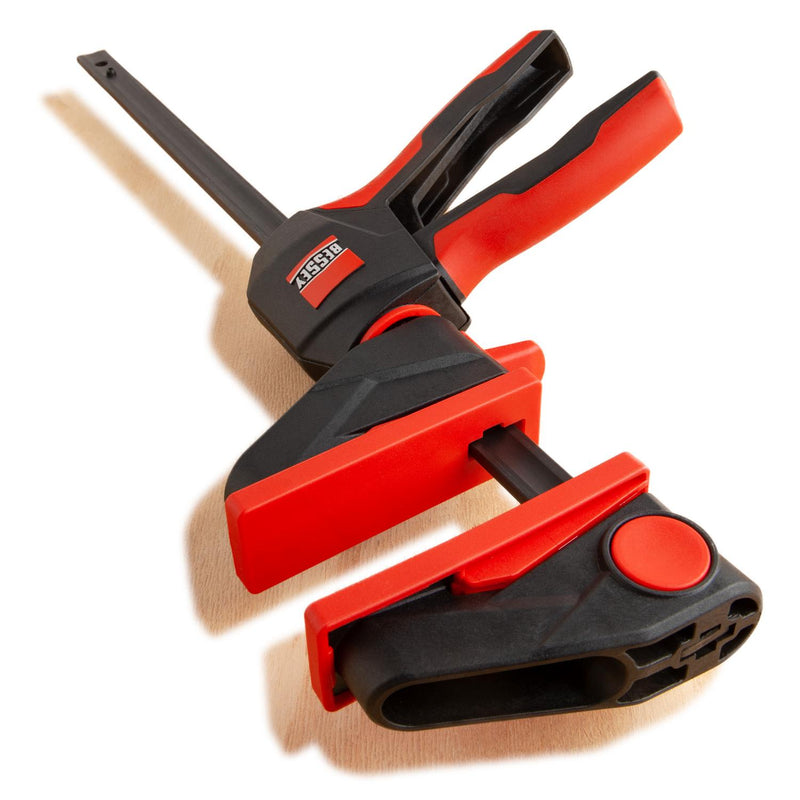

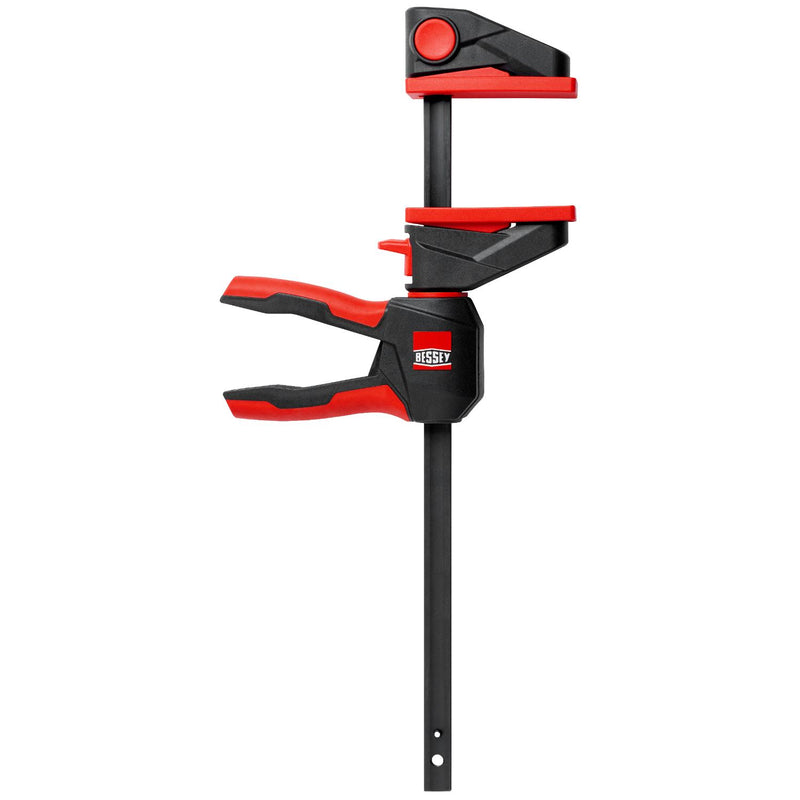

BESSEY One-handed clamp with rotating handle EZ360

The BESSEY EZ360 One-Handed Clamp combines powerful clamping with outstanding access and ergonomic control.

Its innovative handle unit rotates through 360° around the rail. A 12-step locking mechanism securely holds the handle in your chosen position. This allows the handle to be positioned for comfortable operation in almost any working situation. The handle can also move away from the work area when several clamps are positioned close together.

Depending on the model, the EZ360 delivers clamping forces from 400 N to 1,400 N. The range offers openings from 110 mm to 600 mm and throat depths from 40 mm to 80 mm.

Large clamping surfaces with removable protective caps help distribute pressure and protect the workpiece.

The EZ360 can also convert from clamping to spreading for increased versatility.

✅ Key Features

• Innovative 360° rotating handle unit
• Secure 12-step handle locking mechanism
• One-handed clamping and spreading
• Clamping force up to 1,400 N
• Opening capacities from 110 mm to 600 mm
• Throat depths from 40 mm to 80 mm
• Large clamping surfaces
• Removable protective caps
• Quick-release lever for fast adjustment
• Robust fibreglass-reinforced polyamide components
• Strong burnished steel rail
• Ideal for confined working areas

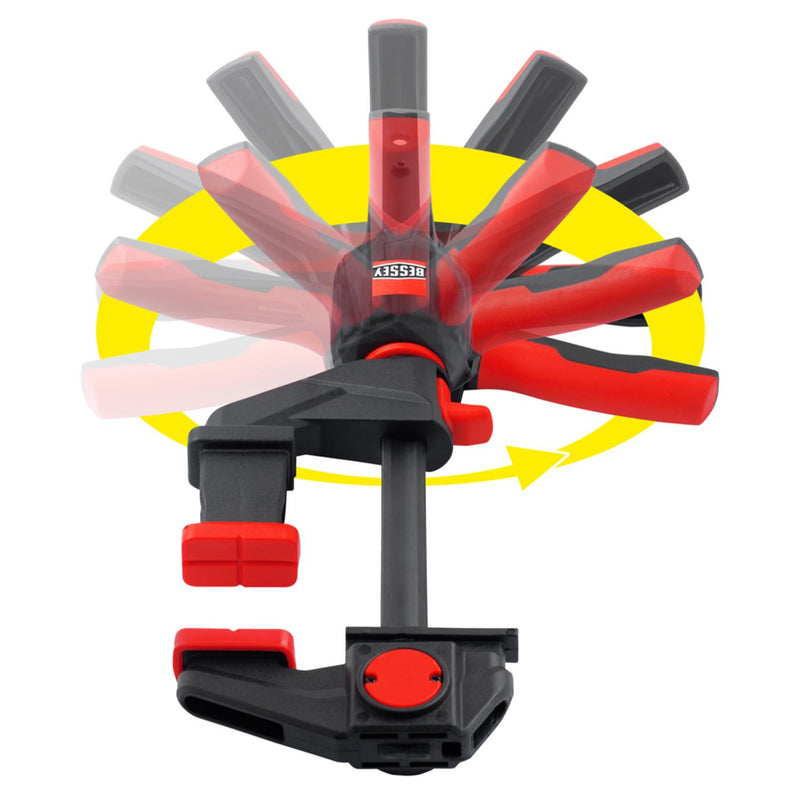

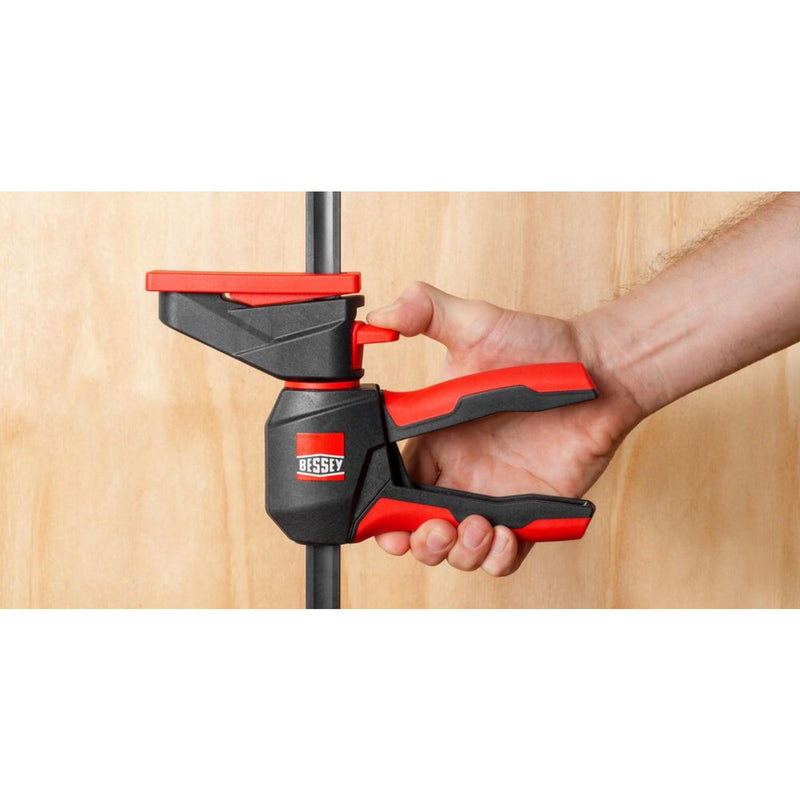

🔄 360° Rotating Handle

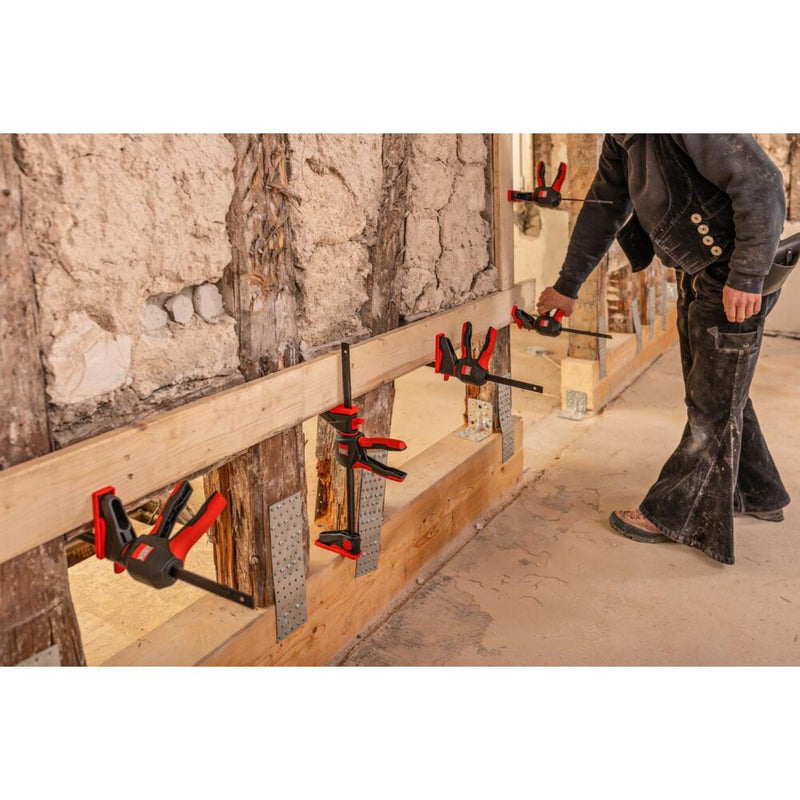

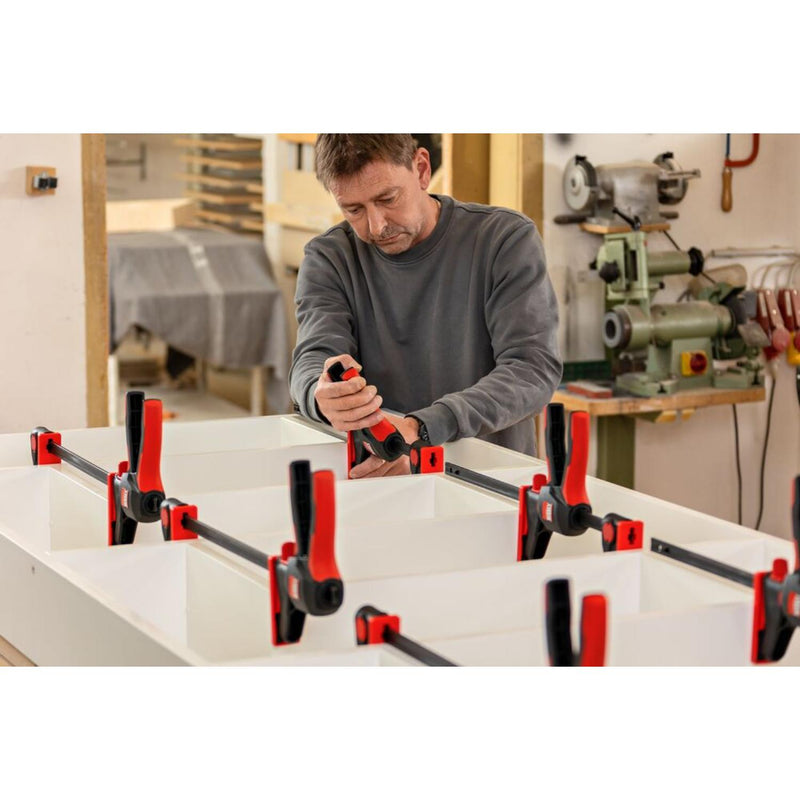

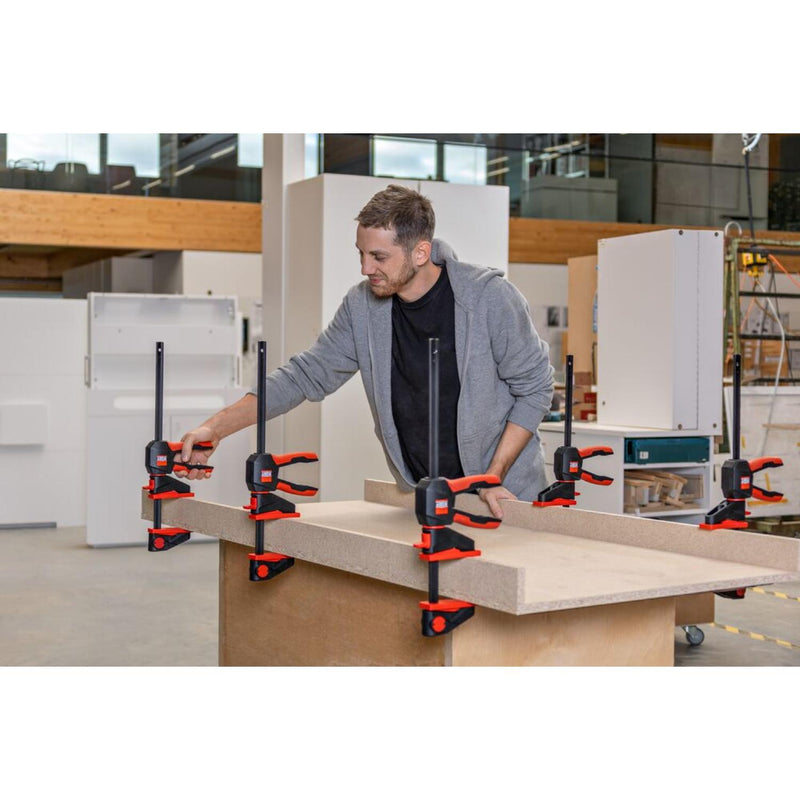

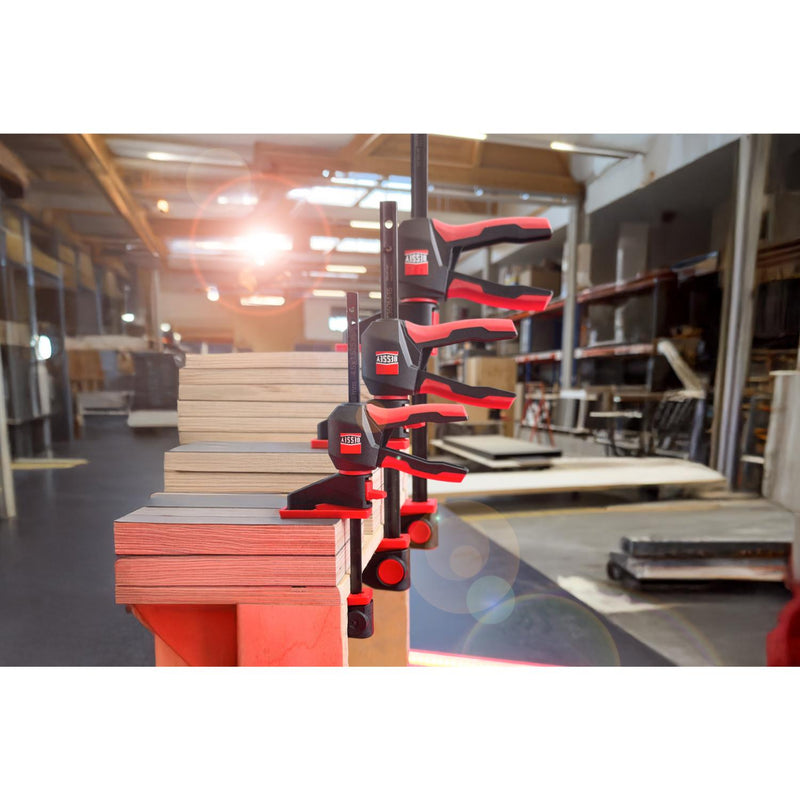

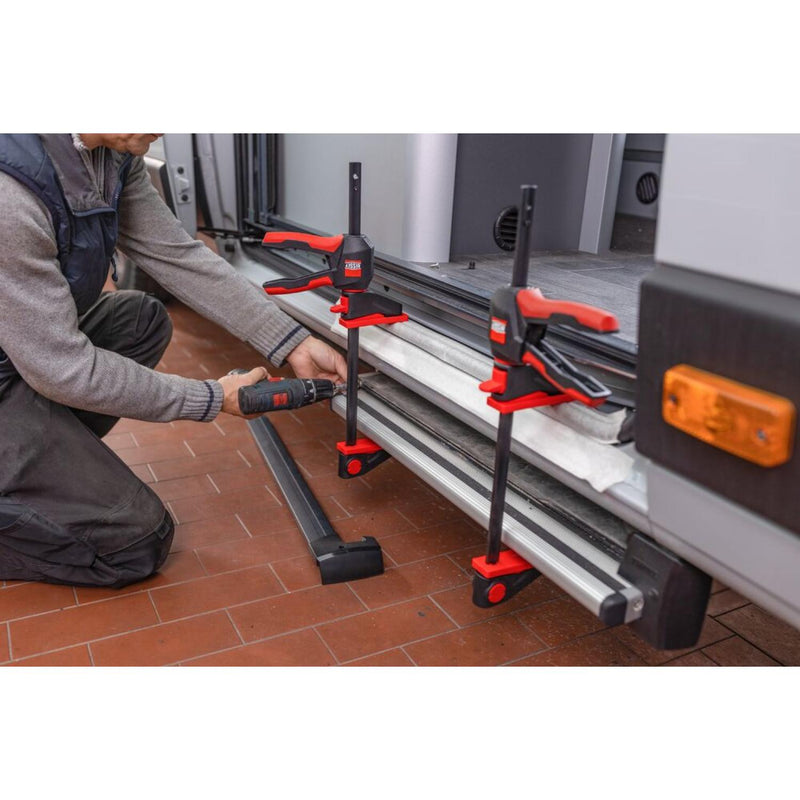

The complete handle unit rotates around the clamp rail. It can be securely locked into one of 12 positions. This allows you to choose a comfortable pumping position for each application. The handle can also be moved after the clamp has been positioned. This is particularly useful when several clamps are working closely together.

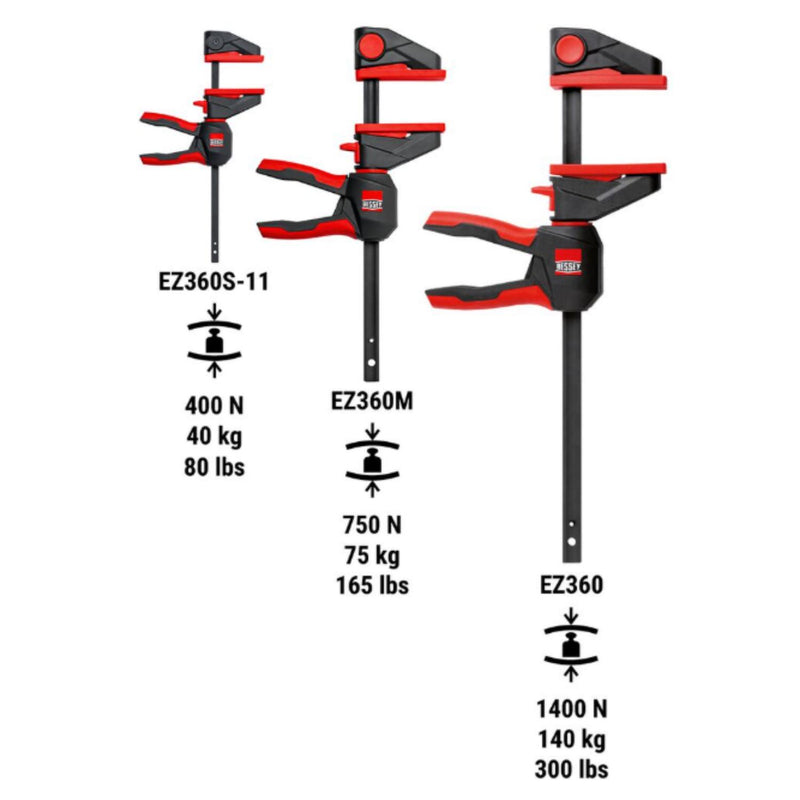

💪 Up To 1,400 N Clamping Force

The largest EZ360 models deliver clamping forces up to 1,400 N or approximately 140 kg. EZ360M models provide up to 750 N of clamping force. The compact EZ360S provides up to 400 N for lighter and more delicate work.

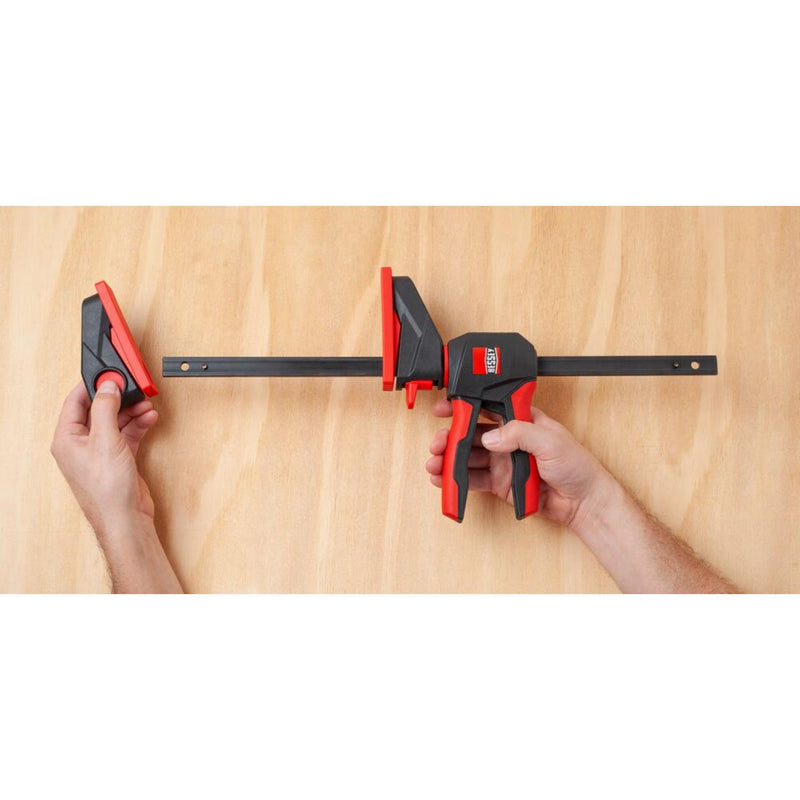

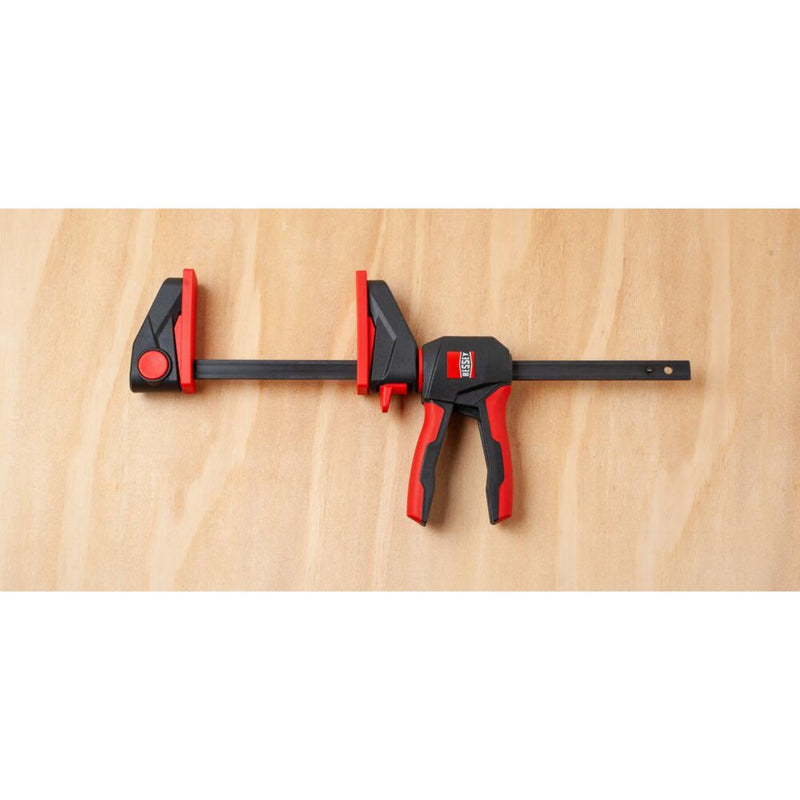

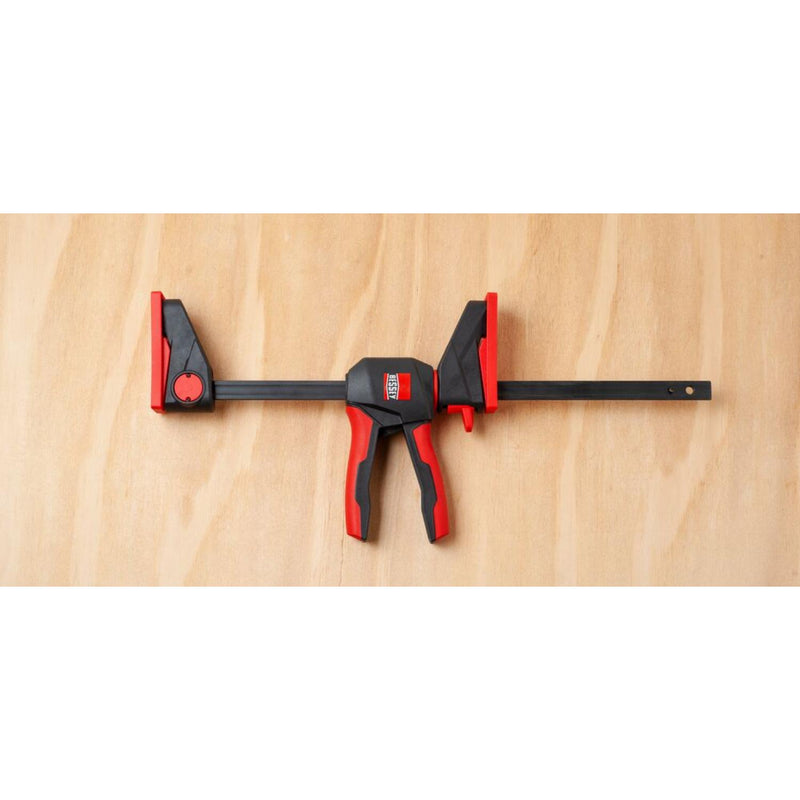

↔️ Clamping And Spreading

The EZ360 range can be used for both clamping and spreading applications. The upper section can be removed and repositioned at the opposite end of the rail. EZ360M and full-size EZ360 models allow tool-free conversion using the integrated push-button mechanism.

🛡 Workpiece Protection

Large clamping surfaces distribute pressure across the workpiece. Removable protective caps help prevent damage to timber, panels and finished surfaces. This makes the EZ360 suitable for furniture, joinery and interior installation work.

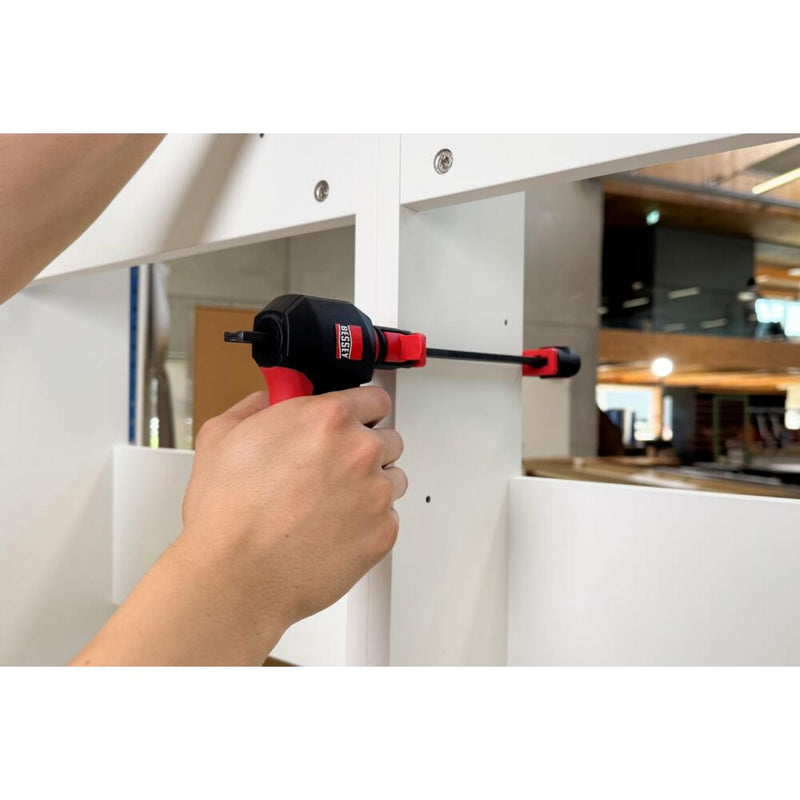

⚡ Fast One-Handed Operation

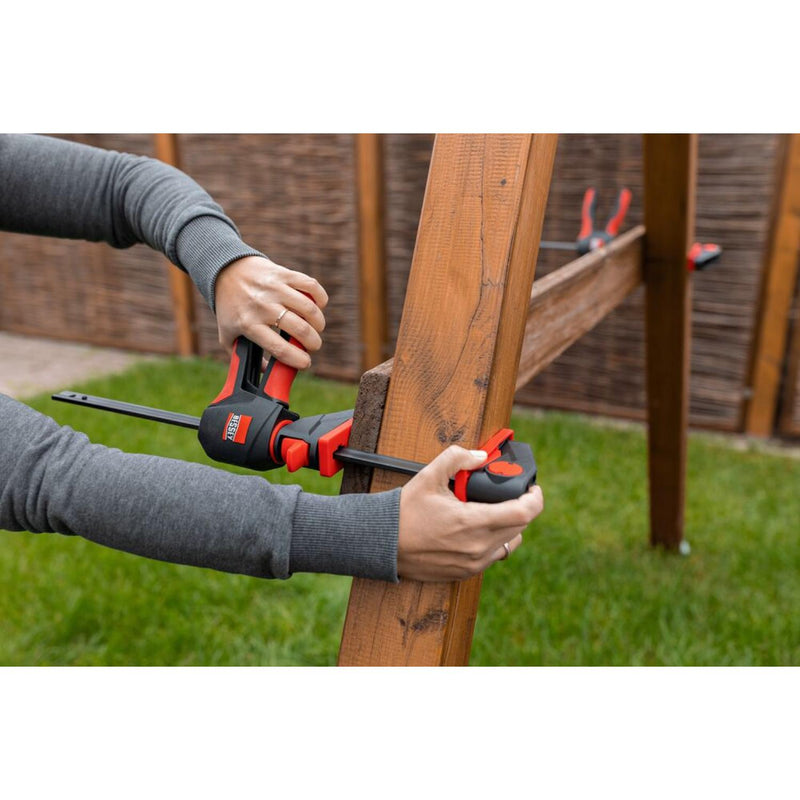

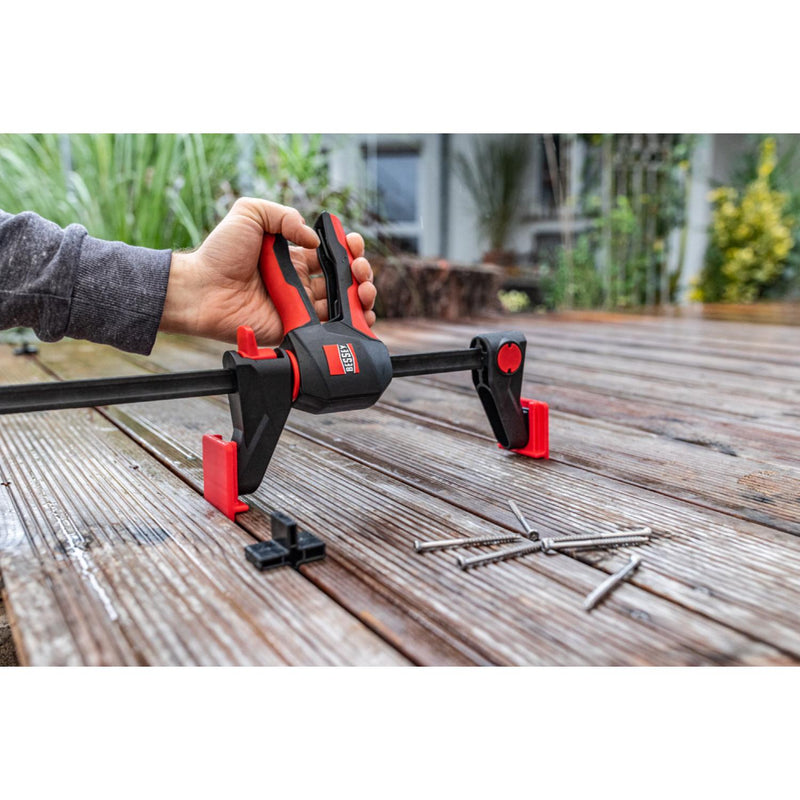

The quick-release lever allows rapid adjustment of the opening or spreading width. Once positioned, the pump handle builds the required pressure using one hand. This leaves your other hand free to position or align the workpiece.

🔩 Strong Professional Construction

The upper and lower sections use durable fibreglass-reinforced polyamide. The rail is manufactured from strong burnished steel. A protective housing helps prevent dust and chips entering the handle mechanism.

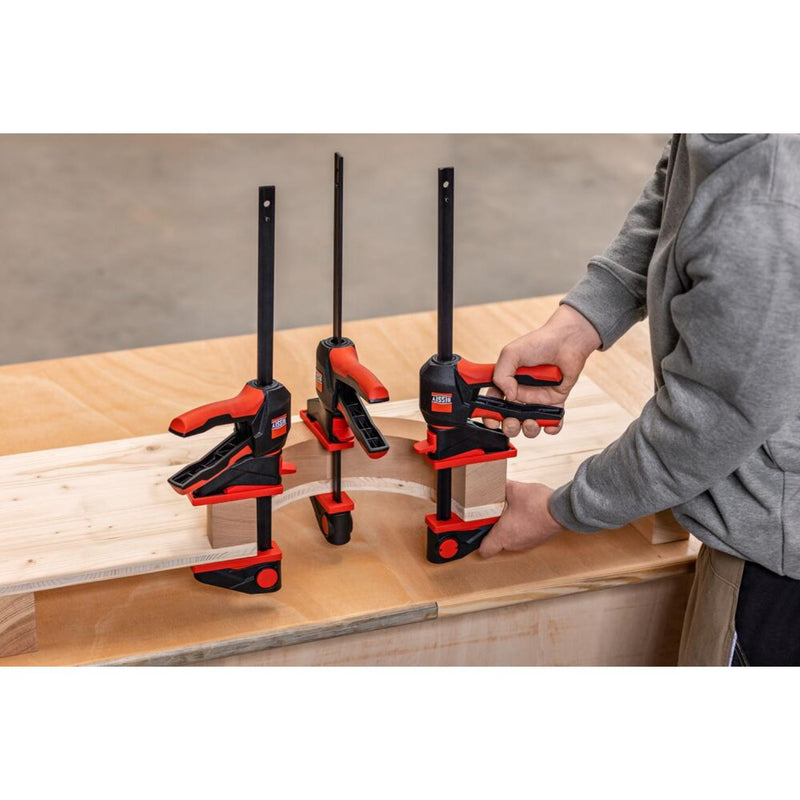

🛠 Applications

Ideal for:

• Carpentry and joinery

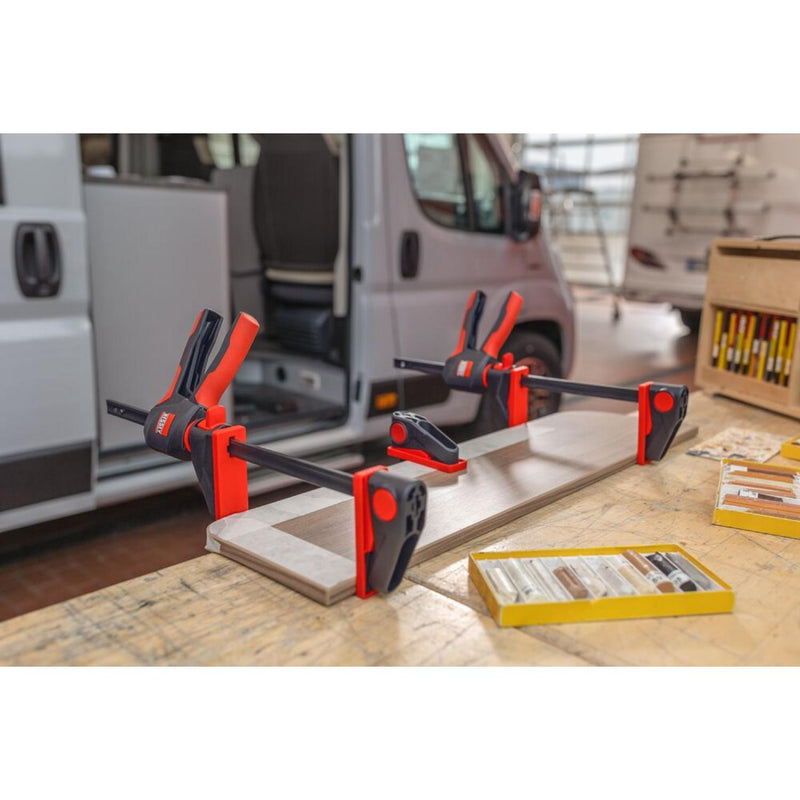

• Furniture assembly

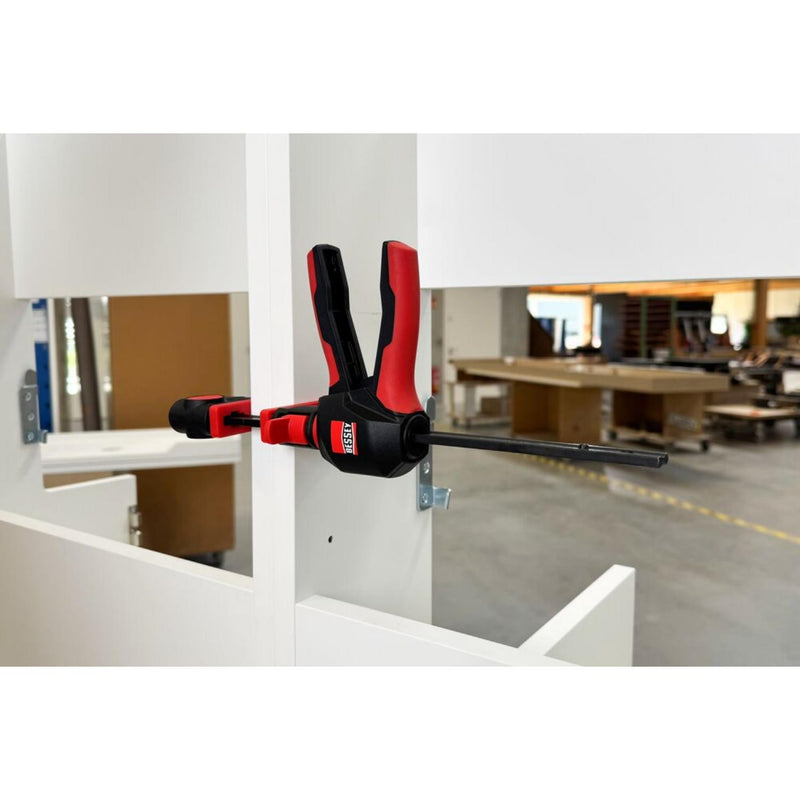

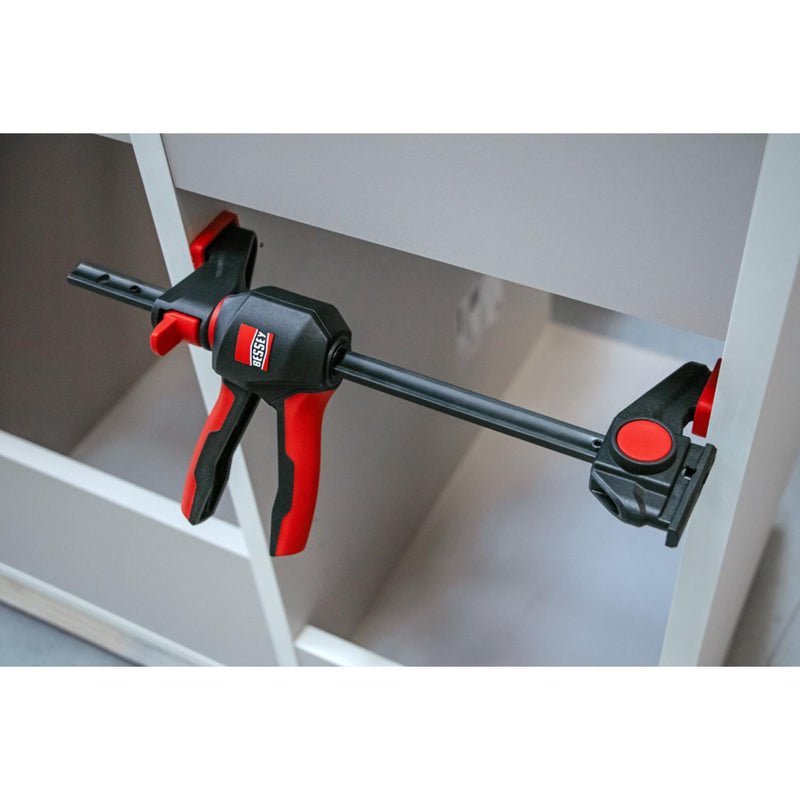

• Cabinet making
• Kitchen fitting
• Shop fitting

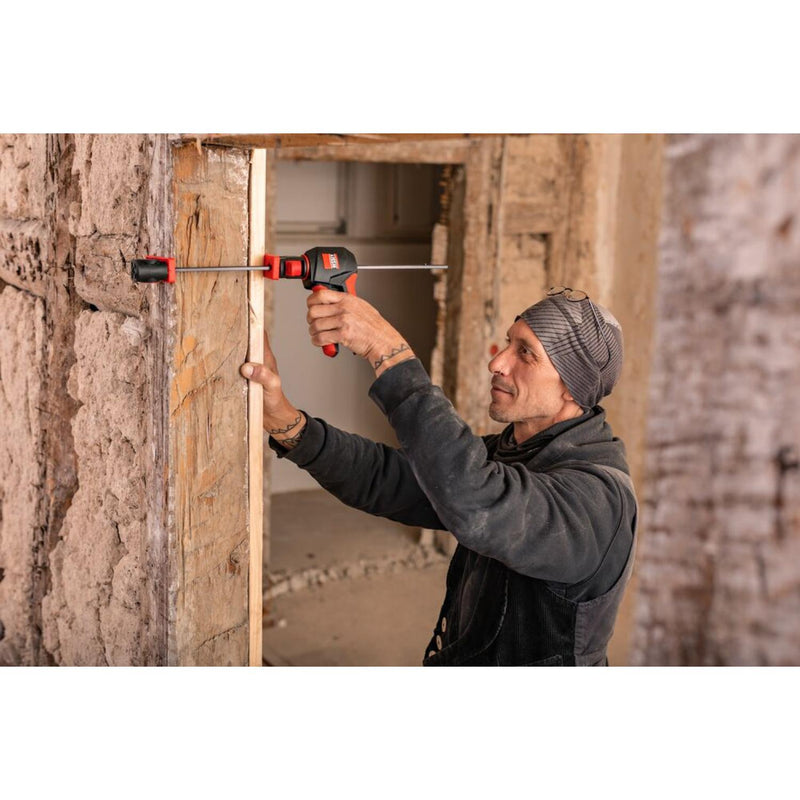

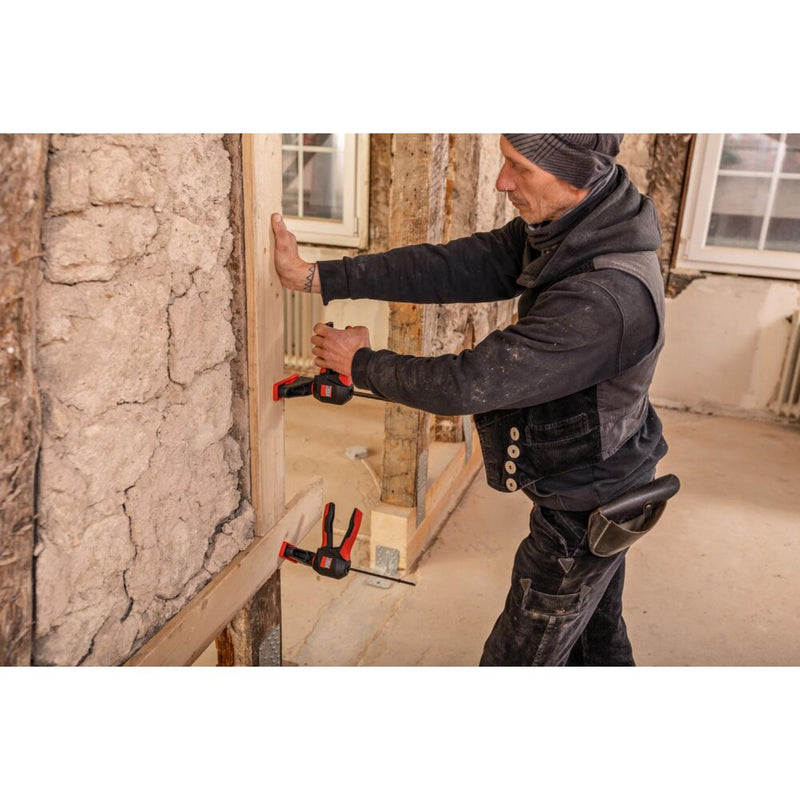

• Interior installation
• Drywall installation

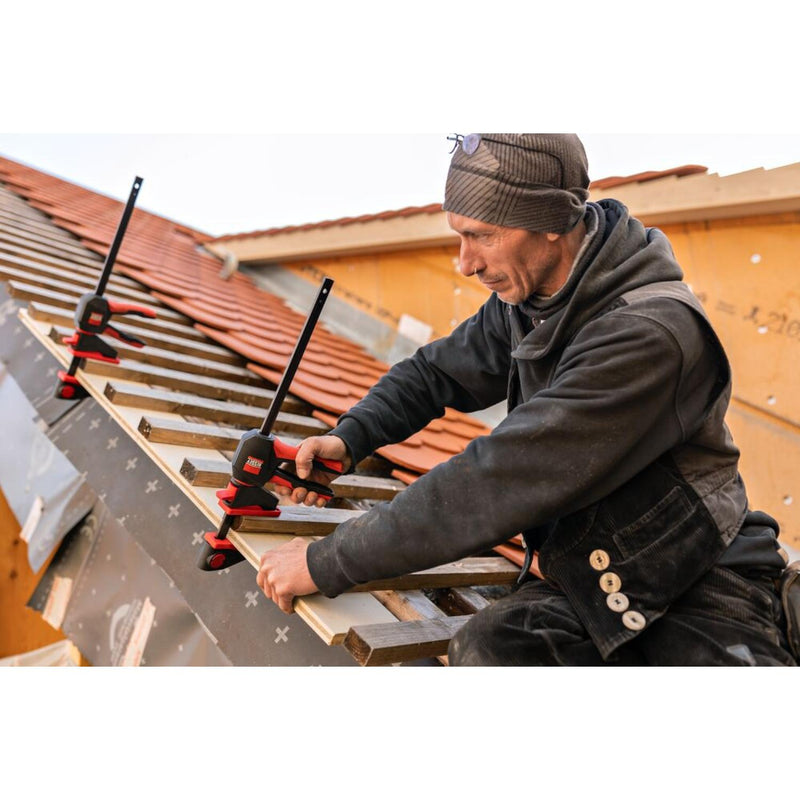

• Staircase construction

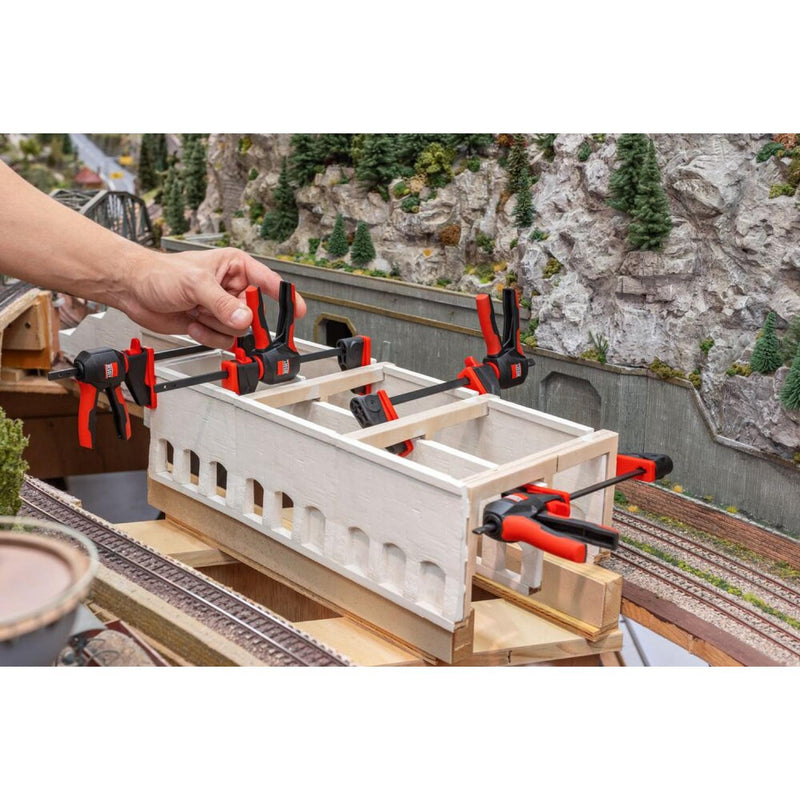

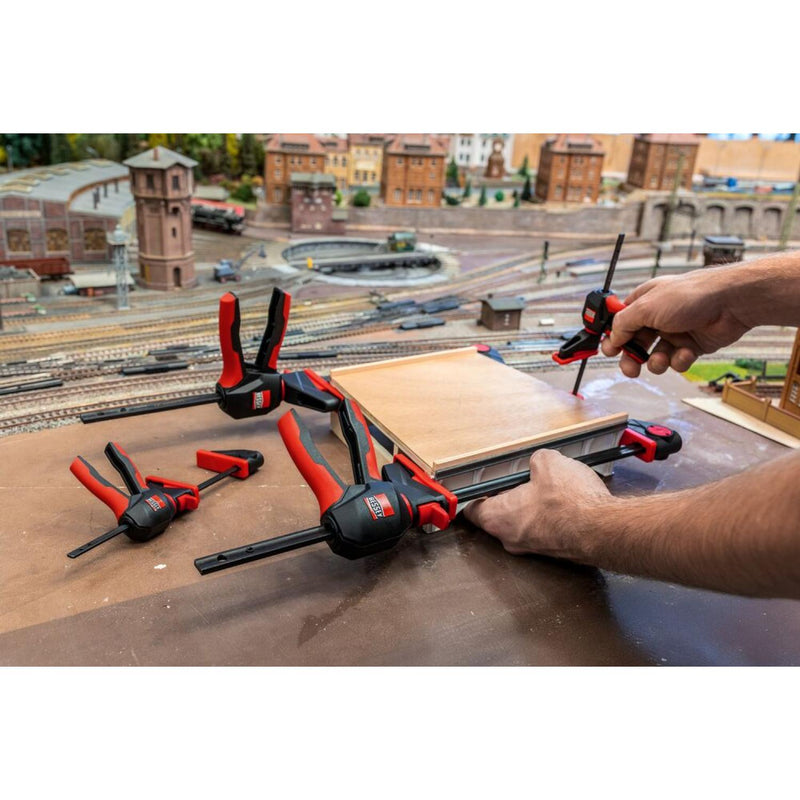

• Model making

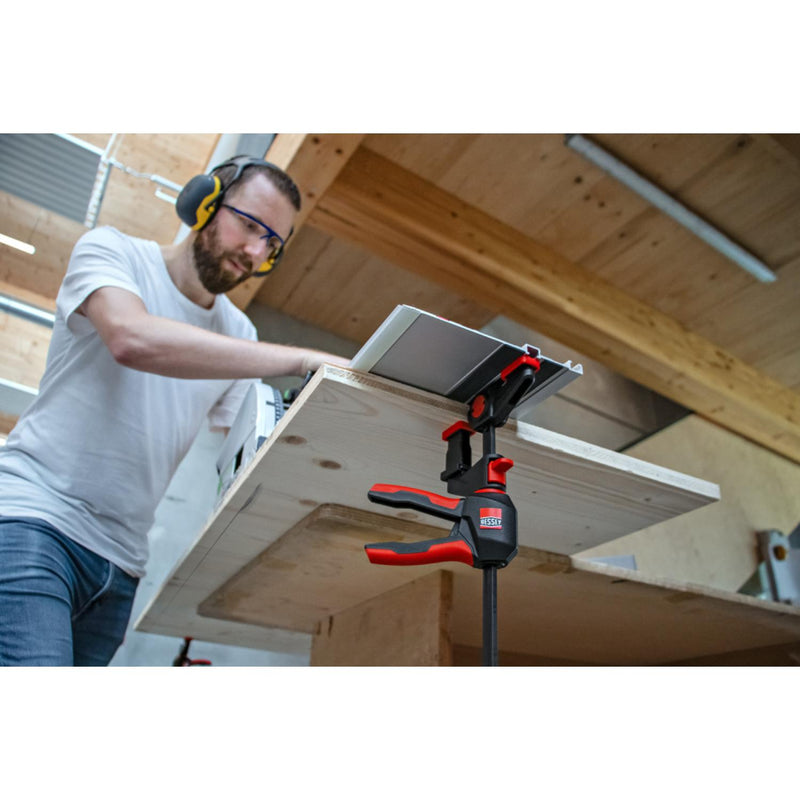

• General workshop use

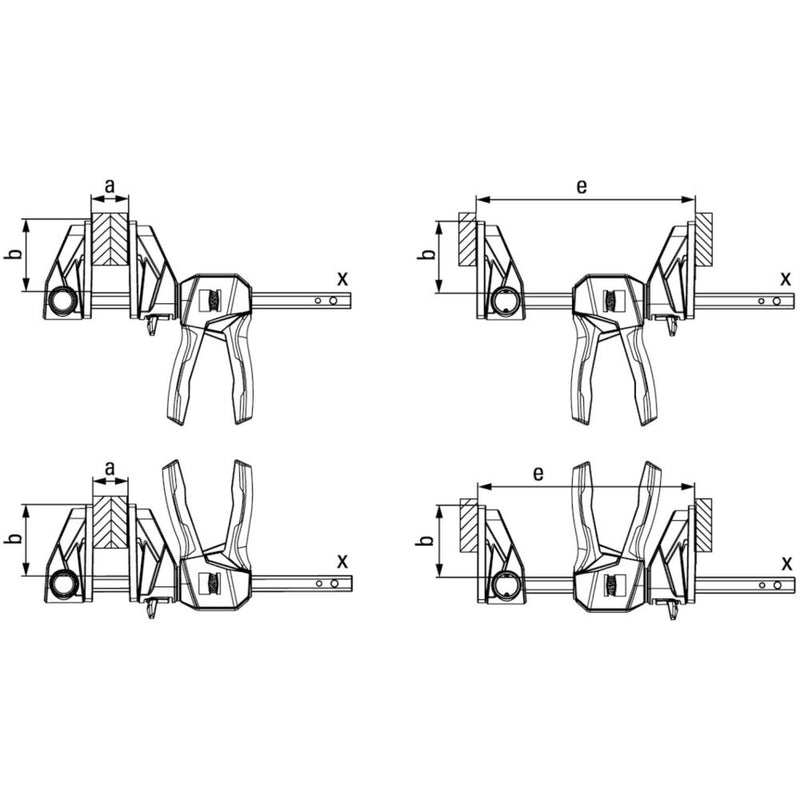

📏 Available Sizes

EZ360S-11SET

• Opening: 110 mm

• Throat Depth: 40 mm

• Clamping Force: 400 N

• Supplied as a two-clamp set
• Spreading Width - 104 - 208mm

EZ360M-15

• Opening: 150 mm

• Throat Depth: 60 mm

• Clamping Force: 750 N
• Spreading Width - 154 - 302mm

EZ360M-30

• Opening: 300 mm

• Throat Depth: 60 mm

• Clamping Force: 750 N
• Spreading Width - 154 -454mm

EZ360-15

• Opening: 150 mm

• Throat Depth: 80 mm

• Clamping Force: 1,400 N
• Spreading Width - 195 - 315mm

EZ360-30

• Opening: 300 mm

• Throat Depth: 80 mm

• Clamping Force: 1,400 N
• Spreading Width - 195 - 465mm

EZ360-45

• Opening: 450 mm

• Throat Depth: 80 mm

• Clamping Force: 1,400 N
• Spreading Width - 195 - 615mm

EZ360-60

• Opening: 600 mm

• Throat Depth: 80 mm

• Clamping Force: 1,400 N
• Spreading Width - 195 - 765mm

⭐ Why Choose the BESSEY EZ360?

The BESSEY EZ360 makes one-handed clamping easier in awkward and restricted working areas.

Its 360° handle provides excellent access while allowing a comfortable operating position.

With clamping, spreading and three performance sizes available, the EZ360 is highly versatile for professional use.
