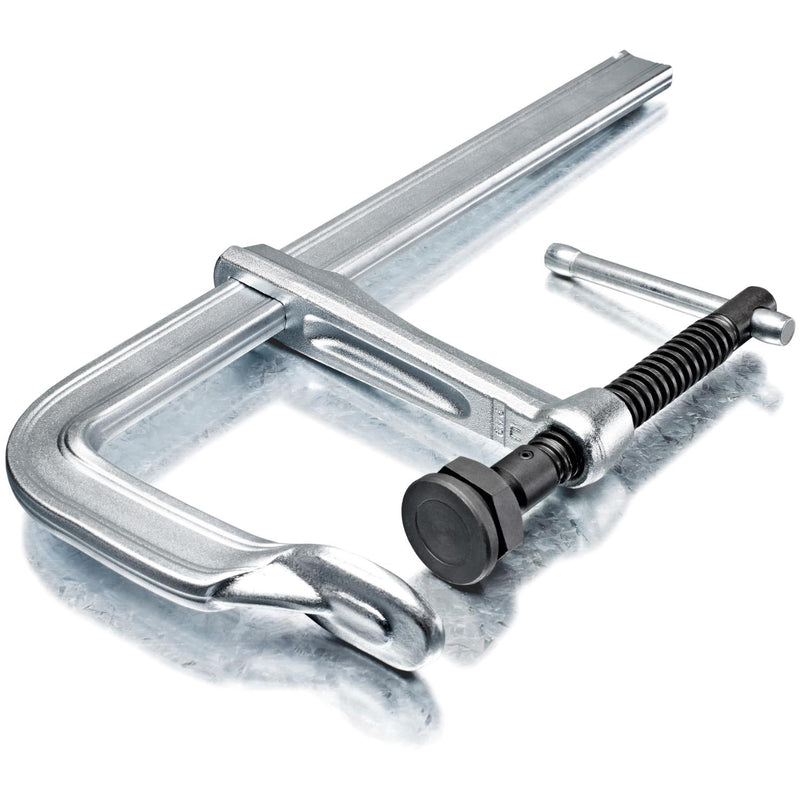

The BESSEY SGM High-Performance Clamp delivers exceptional clamping power for demanding professional metalworking and fabrication applications.

With up to 12,000 N of clamping force, it securely holds large and heavy workpieces under extreme pressure. Maximum clamping force is achieved with a tightening torque of 40 Nm.

An optimised rail profile generates 20% more clamping force with every spindle rotation. This allows high pressure to be achieved quickly while reducing unnecessary tightening effort.

The specially designed sliding arm provides improved linear transfer of force for secure and controlled clamping.

A heat-resistant pressure plate with a sintered steel insert provides excellent durability in demanding workshop environments. The pressure plate also tilts up to 35° for reliable contact with angled or uneven workpieces.

With openings from 250 mm to 1,500 mm, the SGM range is built for serious professional clamping.

✅ Key Features

• Exceptional clamping force up to 12,000 N
• Maximum force achieved at 40 Nm tightening torque
• 20% more clamping force per spindle rotation
• Optimised heavy-duty rail profile
• Improved linear transfer of clamping force
• Heat-resistant pressure plate
• Durable sintered steel pressure plate insert
• Pressure plate tilts up to 35°
• 140 mm throat depth across the range
• Heavy-duty 34 x 13 mm rail
• Opening capacities from 250–1,500 mm
• Designed for demanding professional applications

💪 Up To 12,000 N Clamping Force

The BESSEY SGM delivers powerful clamping forces of up to 12,000 N. Maximum force is achieved with a tightening torque of 40 Nm. This makes it ideal for heavy workpieces requiring secure and dependable holding pressure.

⚙️ Optimised Rail Profile

The specially developed rail profile increases clamping efficiency. It generates 20% more clamping force with each rotation of the spindle. This allows high pressure to be achieved with fewer spindle rotations.

🎯 Secure Linear Force Transfer

The sliding arm is designed to transfer clamping force directly and efficiently. Improved linear force transfer increases stability when extreme clamping pressure is applied. This provides greater security during demanding fabrication and engineering applications.

🔥 Heat-Resistant Pressure Plate

The SGM features a special pressure plate designed for demanding workshop environments. A hard-wearing sintered steel insert provides excellent durability and long service life. The pressure plate can tilt up to 35° to accommodate angled or uneven surfaces.

🔩 Heavy-Duty Professional Construction

Every SGM model uses a substantial 34 x 13 mm rail. The strong rail provides excellent rigidity when high clamping forces are applied. A 140 mm throat depth provides generous reach across large components and assemblies.

🛠 Applications

Ideal for:

• Metal fabrication
• Heavy engineering
• Welding and assembly
• Steel construction
• Manufacturing
• Machinery workshops
• Structural metalwork
• Large component assembly
• Heavy-duty workshop applications
• Professional production environments

📏 Specifications

• Product: BESSEY High-Performance Clamp
• Range: SGM
• Maximum Clamping Force: 12,000 N
• Tightening Torque: 40 Nm
• Opening Capacity: 250–1,500 mm
• Throat Depth: 140 mm
• Rail Size: 34 x 13 mm
• Pressure Plate: Heat resistant with sintered steel insert
• Pressure Plate Movement: Tilts up to 35°
• Clamping Efficiency: 20% more force per spindle rotation

⭐ Why Choose the BESSEY SGM?

The BESSEY SGM is built for applications where exceptional clamping force and reliability are essential.

Its optimised rail generates powerful pressure efficiently while the heavy-duty construction provides outstanding stability.

The heat-resistant tilting pressure plate adds versatility when clamping angled or demanding workpieces.

For fabrication, engineering and heavy industrial work, the SGM provides serious professional clamping performance.
