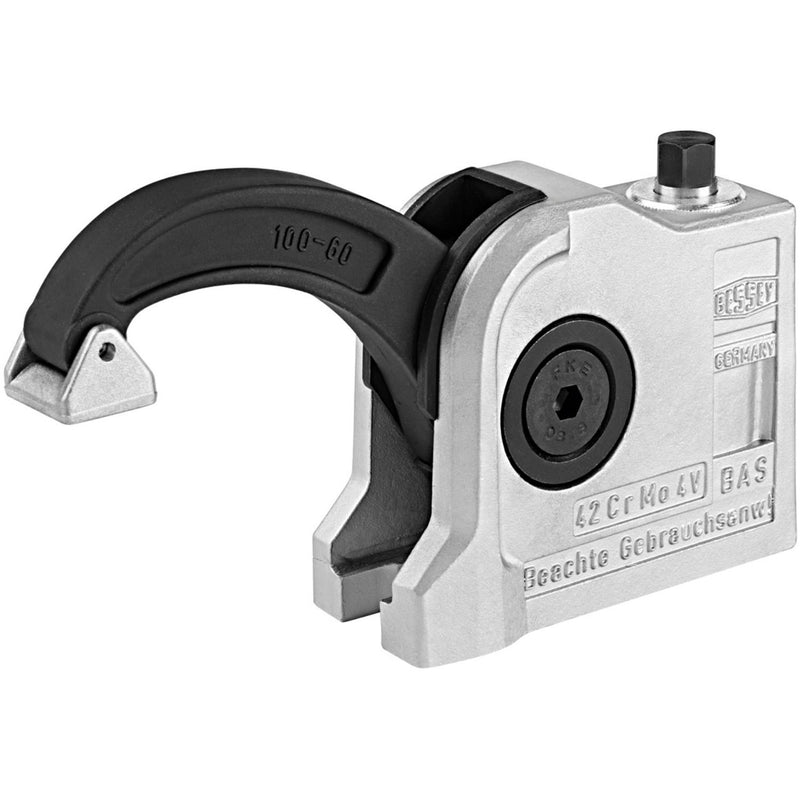

The BESSEY BAS-C Compact Clamp delivers exceptional clamping force within a compact, space-saving machine table design.

With up to 16,000 N of clamping force, it securely holds workpieces during machining, fabrication and assembly applications. Its compact construction is up to 30% smaller than comparable clamp designs. This makes the BAS-C ideal for machine tables, fixtures and applications where working space is limited.

The housing and pressure arm are manufactured from hardened and tempered stainless steel for excellent strength and durability. An open fixing hole allows fast mounting and removal using M10 or M12 fixing systems.

Different pressure arm options provide flexibility for standard workpieces, narrow sections and restricted working areas.

✅ Key Features

• Powerful clamping force up to 16,000 N
• Compact machine table clamp design
• Up to 30% smaller than comparable models
• Open fixing hole for M10 or M12 mounting
• Hardened and tempered stainless steel construction
• Strong and durable pressure arm
• Choice of three pressure arm configurations
• Swivelling aluminium pressure shoe on standard versions
• Pointed pressure arm option for confined spaces
• Suitable for machine tables, jigs and fixtures

🔄 Choice Of Pressure Arms

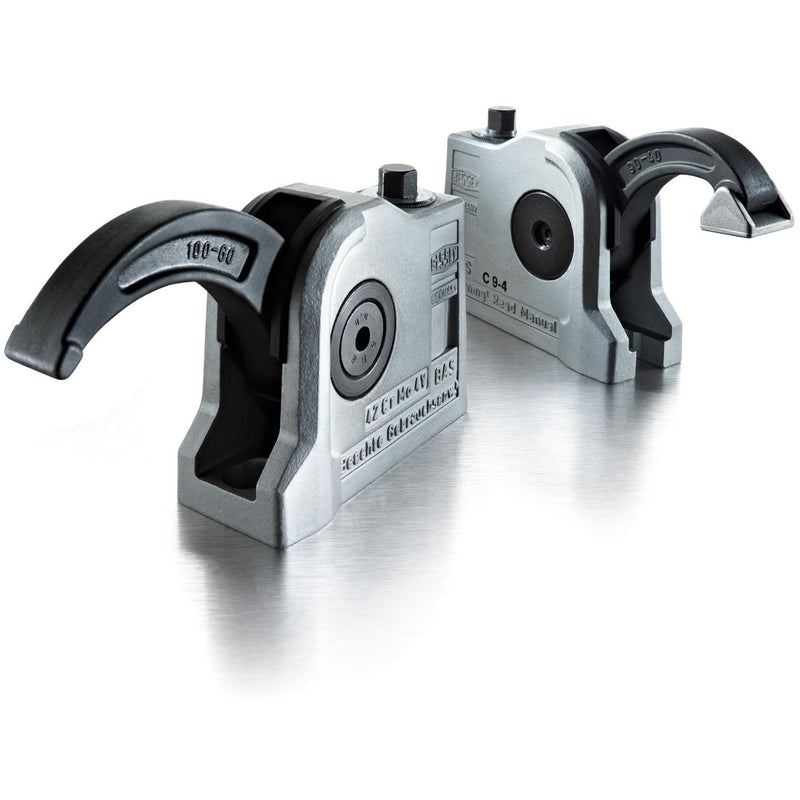

The BAS-C system is available with different pressure arm configurations. Short and long arms feature a swivelling aluminium pressure shoe.

The BSP version uses a pointed pressure arm for narrow sections and confined working areas. This allows the clamping system to suit different workpiece shapes and applications.

🛠 Applications

Ideal for:

• Machine tables

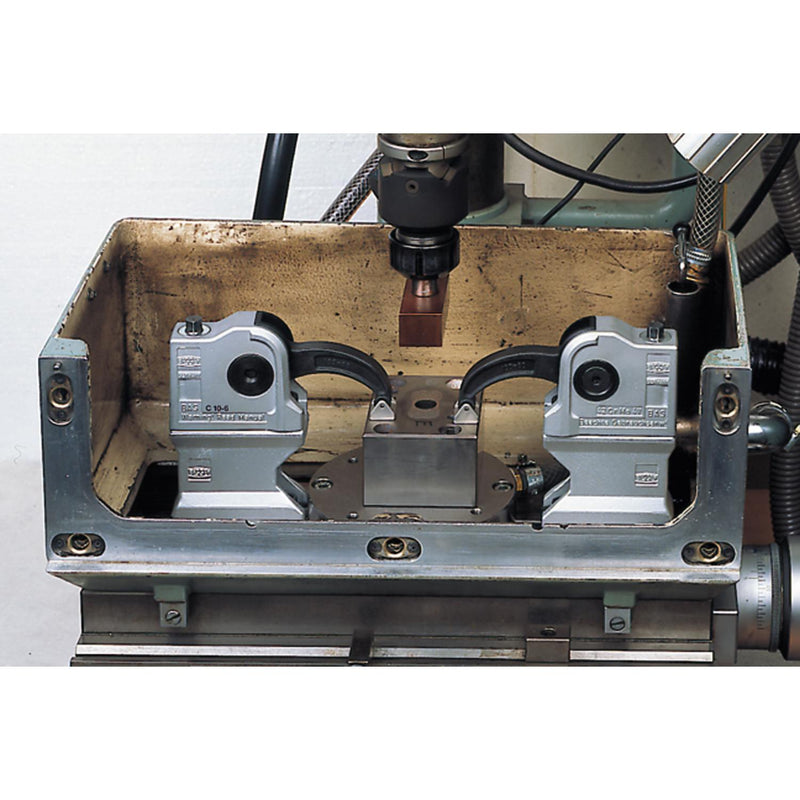

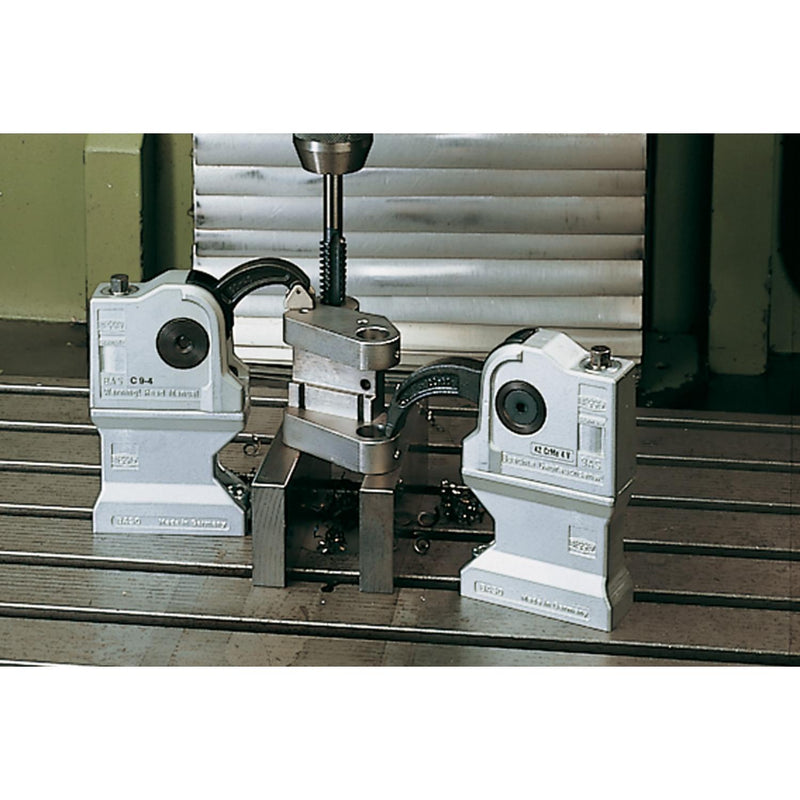

• Milling and machining
• Jigs and fixtures
• Metalworking
• Engineering
• Manufacturing
• Production environments
• Component positioning
• Confined-space clamping
• Professional workshop use

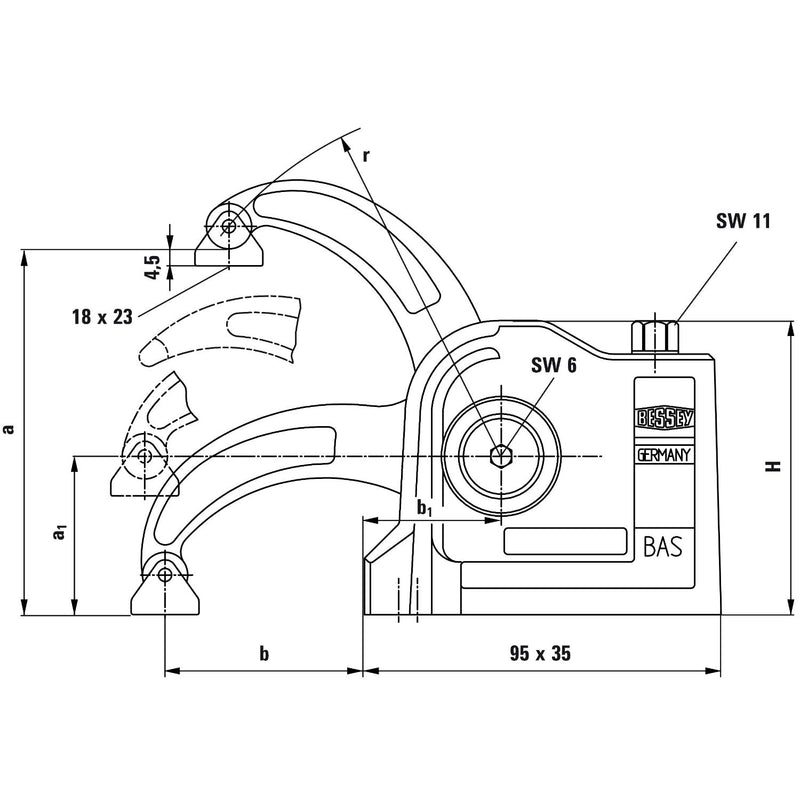

📏 Available Models

BAS-C9-4

• Clamping Height: 88 mm
• Throat Depth: 40 mm
• Weight: Approximately 1.30 kg

• Pressure Arm: Short with swivelling aluminium pressure shoe

BAS-C10-6

• Clamping Height: 97 mm
• Throat Depth: 60 mm
• Weight: Approximately 1.30 kg
• Pressure Arm: Long with swivelling aluminium pressure shoe

BSP-C10-6

• Clamping Height: 97 mm
• Throat Depth: 60 mm

• Weight: Approximately 1.30 kg

• Pressure Arm: Pointed for narrow or restricted areas

⭐ Why Choose the BESSEY BAS-C?

The BESSEY BAS-C combines extremely high clamping force with a compact professional design.

Its open fixing hole makes repositioning fast while taking up minimal machine table space.

Strong stainless steel construction provides the durability required for demanding professional machining applications.
