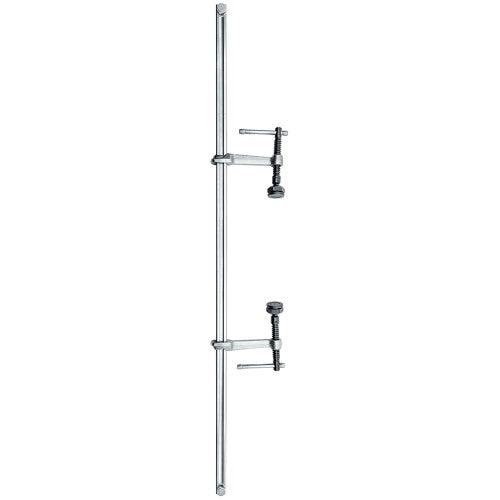

BESSEY SLV100M Variable high-performance Bar clamp SLV 1000/120, BE104831
Tax included. Shipping calculated at checkout.
Clamping force up to 6,500 N Tipping is prevented through central positioning on the workpiece Special heat-resistant pressure plate, can be tilted by up to 35° Clamp can be fed through an opening in the workpiece/component End fastenings can be loosened without tools, The end fastenings on both sides can be loosened without tools enabling rapid changeover of the sliding arms for spreading tasks. It is also possible to replace the sliding arms or to add additional sliding arms easily. Interchangeable sliding arms, The sliding arm is made from forged tempered steel and guarantees the highest level of safety through the linear transfer of forces and can withstand extremely large loads. These can be replaced by other sliding arm variants to suit the application and can also be supplemented by others. Special tilting pressure plate, Both the SLV and the GSV have a special heat-resistant pressure plate. This is replaceable and can be tilted up to 35°. Furthermore, the special pressure plates used with the GSV have a hardened and oil-soaked sintered steel insert. This guarantees outstanding sliding and emergency running properties, thereby ensuring an extremely long service life. Tempered spindle, The tempered spindle is particularly sturdy and wear-resistant. This considerably increases its durability.
