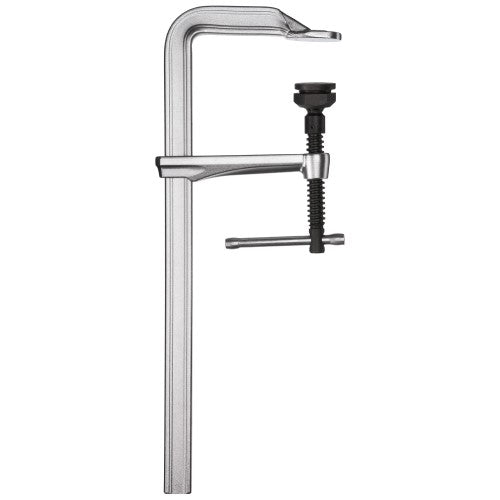

BESSEY SG150M High-performance Welders clamp SG 1500/140, BE101885

Regular price £244.20 GBP
Regular price Sale price £244.20 GBP
SKU: SG150M

BESSEY SG150M High-performance Welders clamp SG 1500/140, BE101885 - Clamping force up to 12,000 N at tightening torque of 40 Nm. 20 % more clamping force per spindle rotation with optimised rail profile. Maximum safety due to the better linear transfer of force of the sliding arm. Long life due to heat-resistant pressure plate with sintered steel insert, which can be tilted up to 35°. Maximum stability, The optimised profile shape guarantees greater clamping force build-up in the shortest time, while maintaining greater stability and safety. The fixed clamp forged from a single piece with moulded pressure plate is hardened, tempered and galvanised, making it highly durable and torsion-resistant.

Product details
Width Height Depth Clamping height Clamping pressure Rail dimensions Rail length Throat depth Rail dimensions
0.21 0.4 1.64 0 12,000 N 34 x 13 mm 1500 mm 140 mm 34 x 13 mm
