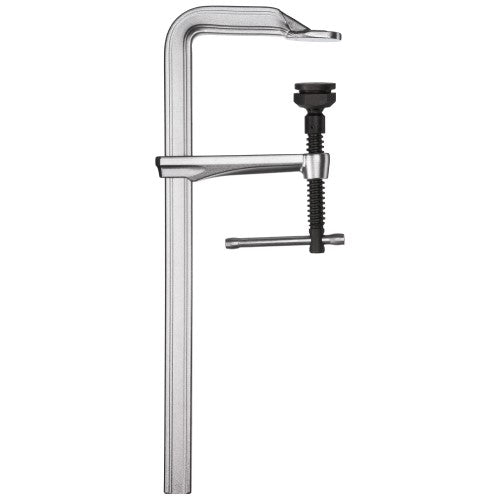

BESSEY SG60M High-performance Welders clamp SG 600/140, BE101838

Regular price £201.94 GBP
Regular price Sale price £201.94 GBP
SKU: SG60M
BESSEY SG60M High-performance Welders clamp SG 600/140, BE101838 • Clamping force up to 12,000 N at tightening torque of 40 Nm • 20 % more clamping force per spindle rotation with optimised rail profile • Maximum safety due to the better linear transfer of force of the sliding arm • Long life due to heat-resistant pressure plate with sintered steel insert, which can be tilted up to 35° Maximum stability, The optimised profile shape guarantees greater clamping force build-up in the shortest time, while maintaining greater stability and safety. The fixed clamp forged from a single piece with moulded pressure plate is hardened, tempered and galvanised, making it highly durable and torsion-resistant. Forged sliding arm, The sliding arm has a shape that allows for more efficient transfer of force. As a result of its more linear transfer of force, the U-shaped sliding arm offers maximum security with the heaviest of loads. You can rely on that. Special tilting pressure plate, The heat-resistant pressure plate is replaceable and can be tilted up to 35° so it can even clamp on angled or sloping surfaces. It has an extremely long service-life due to the oil-soaked sintered steel insert's excellent sliding and emergency running properties. Tempered spindle, The tempered spindle is particularly sturdy and wear-resistant. This considerably increases its durability.
Product details
Width Height Depth Clamping height Clamping pressure Rail dimensions Rail length Throat depth Rail dimensions
0.21 0.4 0.745 0 12,000 N 34 x 13 mm 600 mm 140 mm 34 x 13 mm
