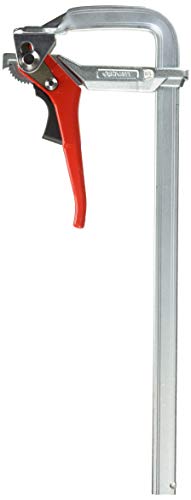

BESSEY GH40-12 Lever clamp GH 400/120, BE101364

Regular price £149.18 GBP
Regular price Sale price £149.18 GBP
SKU: GH40-12
BESSEY GH40-12 Lever clamp GH 400/120, BE101364 - Greater reserves of power, thanks to optimised rail profile, for even clamping force build-up, especially under maximum utilisation of the clamping range. Non-slip trigger release. Sintered steel cams – particularly hard-wearing, low friction due to higher surface hardness. Quick – up to 5 x faster than regular clamps. Secure – vibration resistant. Strong – clamping force up to 8,500 N. Secure ratchet mechanism, The ratchet mechanism ensures rapid, controlled, vibration-free clamping. A hardened cam at the end of the lever ensures a long service life. Maximum stability, The optimised profile shape with greater reserves of force enables a more even application of force – especially under full utilisation of clamping width. The fixed clamp forged from a single piece with moulded pressure plate is hardened, tempered and galvanised, making it highly durable and torsion-resistant. Rail Profile - 24.5 x 9.5 mm
Product details
Width Height Depth Clamping height Clamping pressure Rail dimensions Rail length Throat depth Rail dimensions
0.21 0.04 0.49 0 8,500 N 24.5 x 9.5 mm 400 mm 120 mm 24.5 x 9.5 mm
Currently out of stock
