The FAMAG 1616 WS Disc Cnd Plug Cutter is a professional-grade cylinder head cutter designed to produce precise wood plugs for filling knots, defects and repair work. Its tungsten-carbide-tipped blades and robot-ground cutting geometry ensure tear-free, uniform plugs up to 70 mm long when used with blank drills. Each set is supplied in a wooden case.

📐 Available Sets

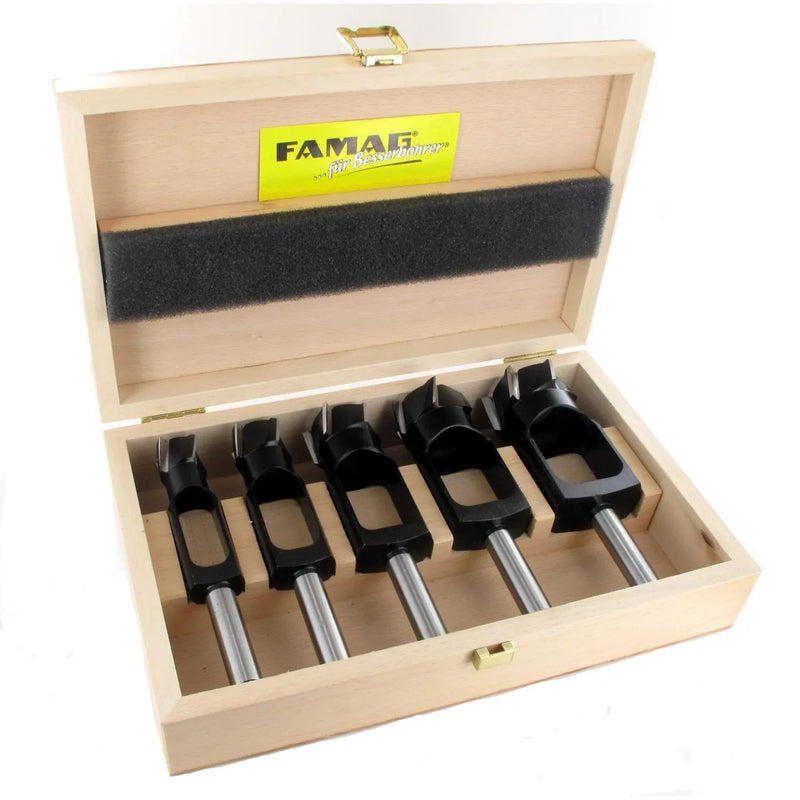

• 5-pc:  Ø 15, 20, 25, 30, 35 mm
• 6-pc Set 1:  disc cutter F1616: Ø 15, 20, 25 mm incl. Bormax F1622: Ø 15, 20, 25 mm
• 6-pc Set 2: disc cutter F1616 including Bormax 2.0 WS prima F1624 Ø 15, 20, 25 mm
• 8-pc: disc cutter F1616: Ø 6, 8, 10, 12 mm incl. wood twist drill HSS-G F1594: Ø 6, 8, 10, 12 mm

✨ Key Features

• Dual Main Blades & Peripheral Cutters – Two hardened cutters plus two circumferential spurs minimize tear-out and ease plug release

• Tungsten-Carbide Tips – Long-lasting sharpness in hardwoods, MDF and coated panels

• Robot-Ground Geometry – Consistent, clean cuts every time

• Edge Positioning Design – Place at workpiece edge for optimal chip ejection and plug quality

• Low Friction Cutting – Reduced heat build-up for extended tool life

• Wide Diameter Range – Ideal for plugs from small dowel sizes to large repair patches

⚙️ Technical Specs

• Inner Cutter Ø: 6 – 80 mm (select your plug size)

• Shank Ø: 13 mm (6–40 mm cutters) & 16 mm (45–80 mm cutters)

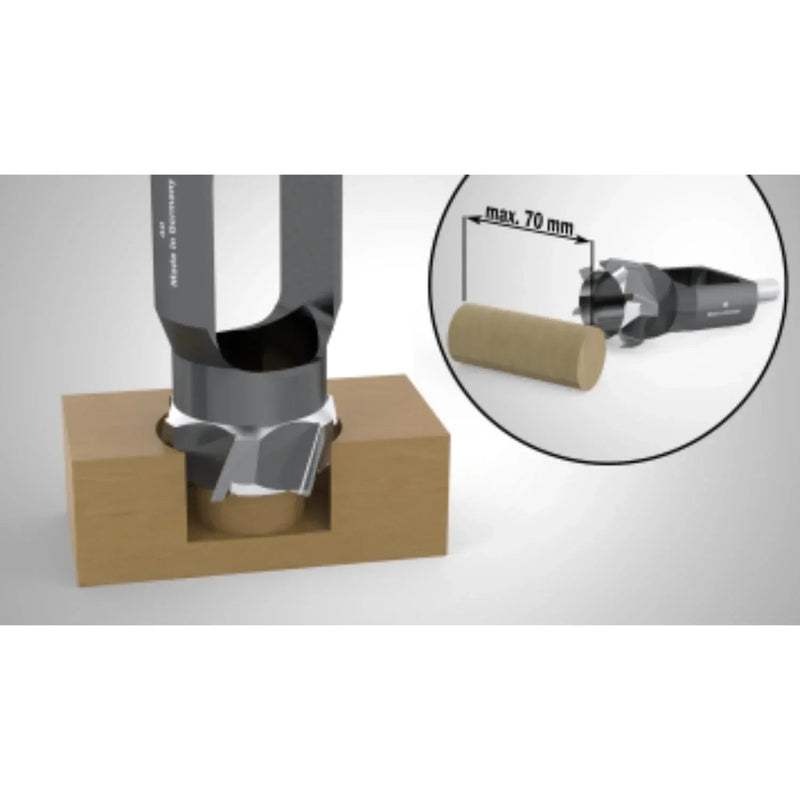

• Max Plug Length: 70 mm

• Overall Length: 140 mm

• Material: Tungsten-carbide tips on alloyed steel core

🪵 Applications

• Crafting wood plugs for knot and defect repairs

• Furniture restoration and panel patching

• Decorative plug creation for visual accents

• Precision repair work in solid wood, veneers and composites
